Description

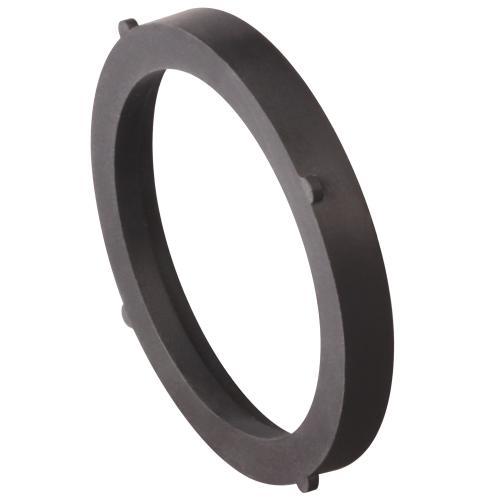

Hansen 100mm IBC Adaptor Seal / HIBCS100
This is a standard IBC Fitting seal for general use.
SPECIFICATIONS
- PRODUCT CODE: HIBCS100
- CODE MEANING: HANSEN IBC SEAL
- SUITS: HIBCFBA10080 100mm x 80mm IBC Female Buttress Adaptor (Available as seperate purchase)
- PRESSURE AND FLOW RATES
- CHEMICAL RESISTANCE OF TRUE FIT TANK FITTINGS
- Please refer to “True Fit Threaded Fittings Chemical Resistance Chart” in image gallery for specifications and chemical resistance details.
- CHEMICAL RESISTANCE OF TRUE FIT TANK FITTINGS
- True Fit Tank Fittings are WRAS Approved Product, refer to Hansen Australia Website for certificate.
FEATURES AND BENEFITS
- Designed for use in tanks, troughs and a wide variety of marine applications.
- Manufactured from UV stabilised high quality glass fibre reinforced nylon, giving a weather, termite, fungi and bacterial resistance.
- An extensive range of fittings in sizes 15mm to 100mm (1/2″ to 4″).
- Precision heavy duty tapered threads give a strong reliable seal.
- Material is strong enough to minimise potential cross threading.
- Fittings provide flexibility and versatility for new and existing installations, saving on time and money.
- All materials are fully resistant to salt water, making them ideally suited to marine applications.
TRUE FIT TANK FITTINGS QUICK AND EASY INSTALLATION (See visual guide in image gallery)
- Prior to installation, refer to tank manufacturer’s recommendations before drilling outlet in tank wall.
- All pipe work must be adequately supported.
- Use a thread sealant on all threaded connections. Loctite 5331 is recommended.
- If you are using chemicals or have any special requirements that you wish to use your Tank Fittings in, check the Tank Fitting Chemical Resistance attached in the image gallery.
- For Minimum Recommended Hole Sizes, kindly check the whole chart in the image gallery.
- Check the sealing surface to ensure it is free from debris and/or scratches which could cause leakage.
- To obtain proper washer compression for fitting installation ensure the face of the washers fully contacts the tank wall.
- Tighten the nut to ensure a water tight seal.
- HANSEN True Fit Tank Fitting can be used in conjunction with metal fittings.
STEP-BY-STEP INSTALLATION PROCESS (See visual guide in the image gallery)
- 1.) Remove the Back Nut and the Low Density Poly Washer (the firmer of the 2 washers) from the Tank Fitting Body. Slide the Tank Fitting Body through the hole in the tank. The Rubber Washer must be between the Fitting Body Flange and the tank wall (ensure the ribs on the Rubber Washer are sealing against the tank wall).
2.) On the inside of the tank wall, slide the Low Density Poly Washer back onto the Tank Fitting Body and then wind on the Back Nut.
3.) Tighten the Back Nut so that the face of both washers make full contact with the tank wall to obtain a water tight seal. Ensure that you comply with the tank manufacturers specifications.
4.) When adding additional fittings, it is recommended that either a thread sealing tape be used on all threaded connections. Loctite is recommended as a sealant.
BROCHURE AND CHEAT SHEETS
- For HANSEN True Fit Tank Fittings Brochure and Cheat Sheet Guide, refer to Hansen Australia Website.
- For HANSEN IBC Tank Fitting Cheat Sheet Guide, refer to Hansen Australia Website.
HANSEN TRUE FIT TANK FITTINGS VIDEO GUIDES & COMMERCIALS
- For HANSEN True Fit Tank Fittings Handy Tips and Commercial Videos, refer to Hansen Australia Website.
TANK FITTING RECOMMENDED HOLE SAW SIZE (See visual sizing guide in the image gallery)
- 15mm = 22mm or 7/8″ Hole Saw
20mm = 27mm or 1 1/16″ Hole Saw
25mm = 34mm or 1 3/8″ Hole Saw
32mm = 42mm or 1 5/8″ Hole Saw
40mm = 48mm or 1 7/8″ Hole Saw
50mm = 60mm or 2 3/8″ Hole Saw
80mm = 95mm or 3 3/4″ Hole Saw
100mm = 121mm or 4 3/4″ Hole Saw
TANK FITTING MINIMUM RECOMMENDED HOLE SAW SIZE (See visual sizing guide in the image gallery)
- Hole Size for 15mm = 22mm
Hole Size for 20mm = 27mm
Hole Size for 25mm = 34mm
Hole Size for 32mm = 42mm
Hole Size for 40mm = 48mm
Hole Size for 50mm = 60mm
Hole Size for 80mm = 95mm
Hole Size for 100mm = 121mm
FREQUENTLY ASKED QUESTIONS
- QUESTION: Can I use my Hansen fittings with my swimming pool/spa pool set up?
- ANSWER: No, as the high concentration of chlorine used in the water for pools will attack the material. The fitting material is only suitable for use with domestic water. Hansen products that are used in this application will not be covered by the Hansen Warranty.
- QUESTION: Can I use these fittings with metal fittings?
- ANSWER: Yes, please see installation instruction above.
- QUESTION: Does this fitting carry the Hansen warranty?
- ANSWER: Yes, all Hansen manufactured products carry our Hansen Warranty.
- QUESTION: How tight should I tighten my fittings?
- ANSWER: Do not over tighten. The right way to assemble a threaded fitting is hand tight plus one to two turns – no more! For further details, please see installation instructions above.
- QUESTION: What temperature can I use Hansen fittings at?
- ANSWER: Hansen have tested all its products for use with cold water up to a maximum temperature of 60°C (140°F). It is not recommended to use of these products with temperatures higher than 60°C (140°F) as plastic expands due to temperature increases. Hansen cannot guarantee the products will perform when used with temperatures over 60°C (140°F). Hansen products that have failed in temperatures higher than 60°C (140°F) will not be covered by Hansen Warranty.
- QUESTION: What type of thread sealant should I use?
- ANSWER: Use a thread sealant on all threaded connections. It is recommended to use Loctite 5331.
