Description

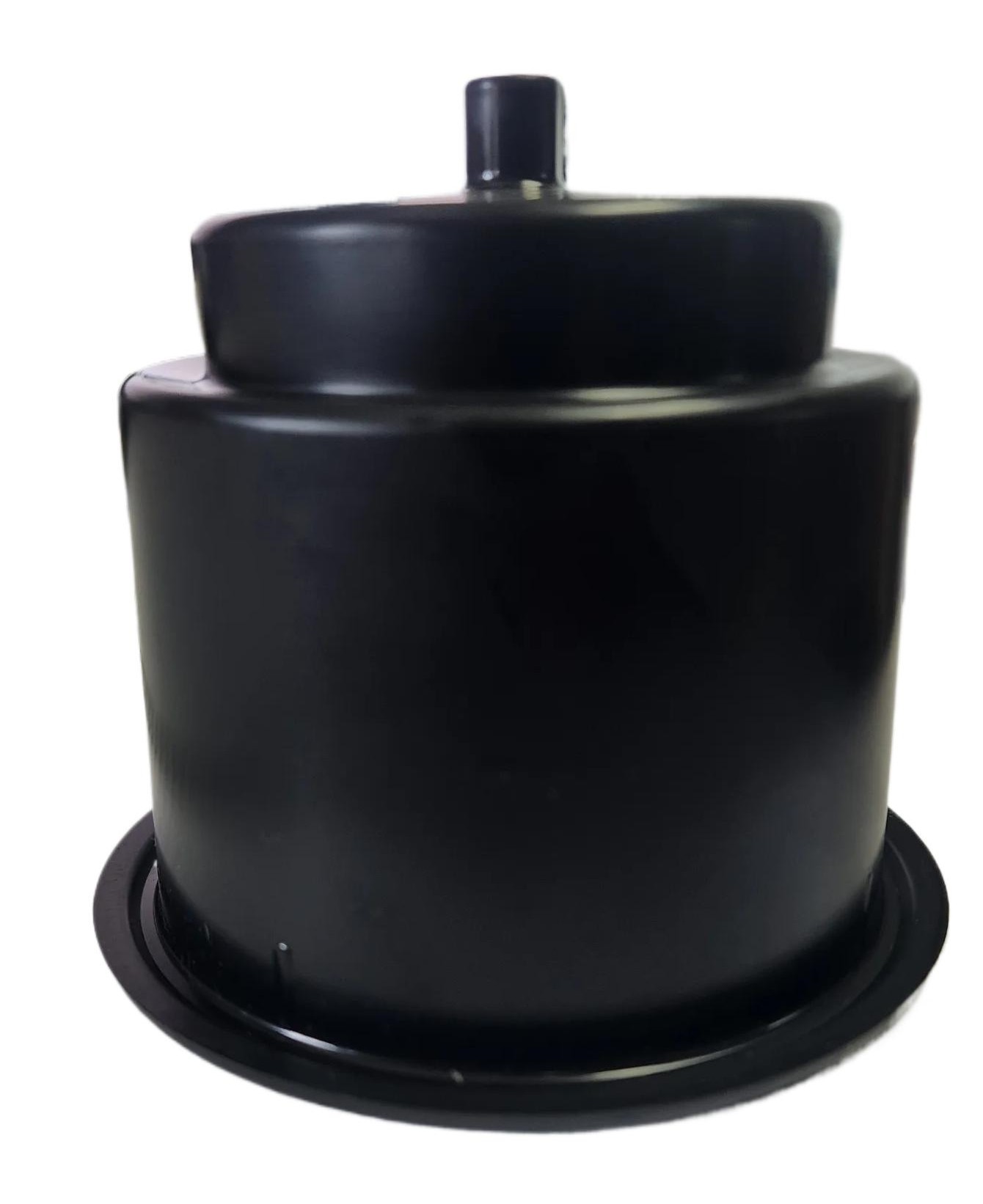

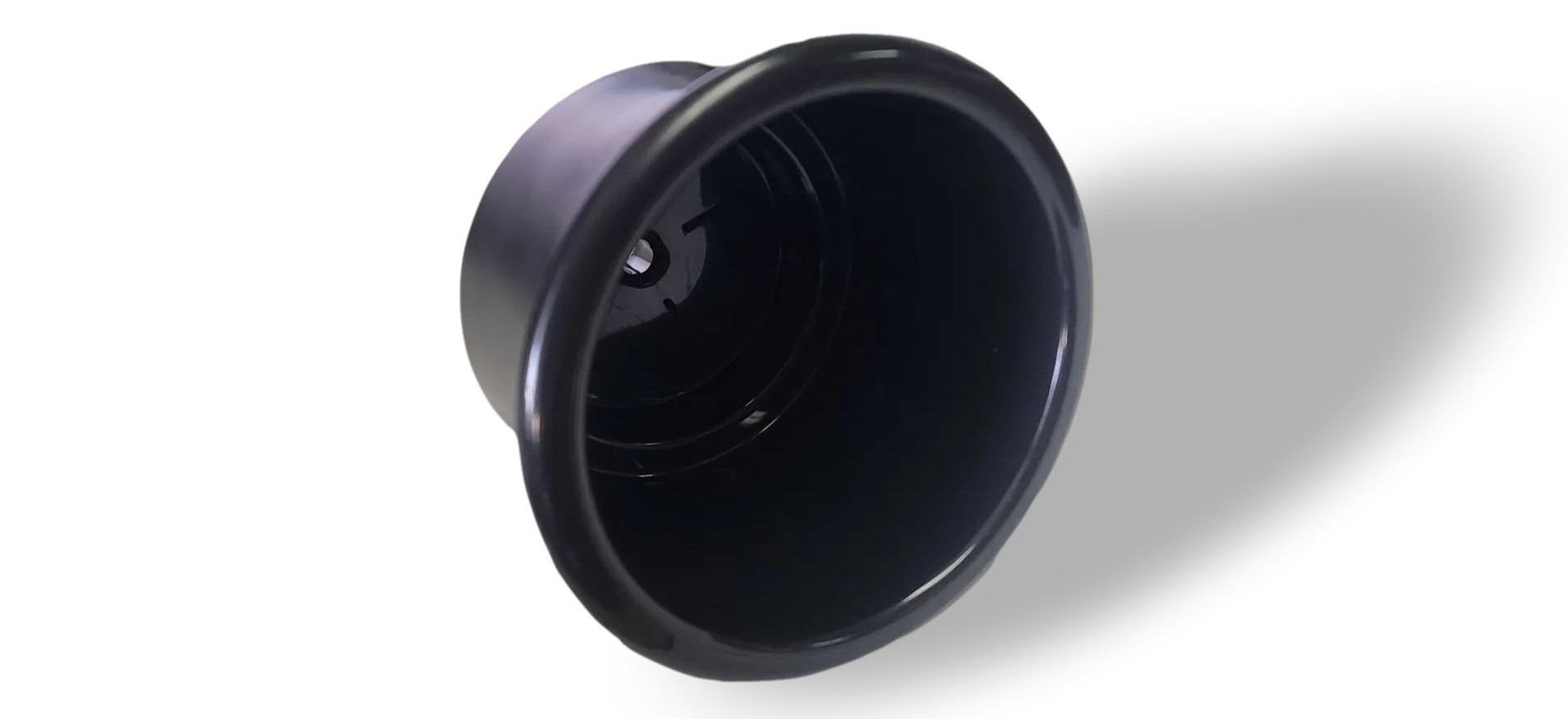

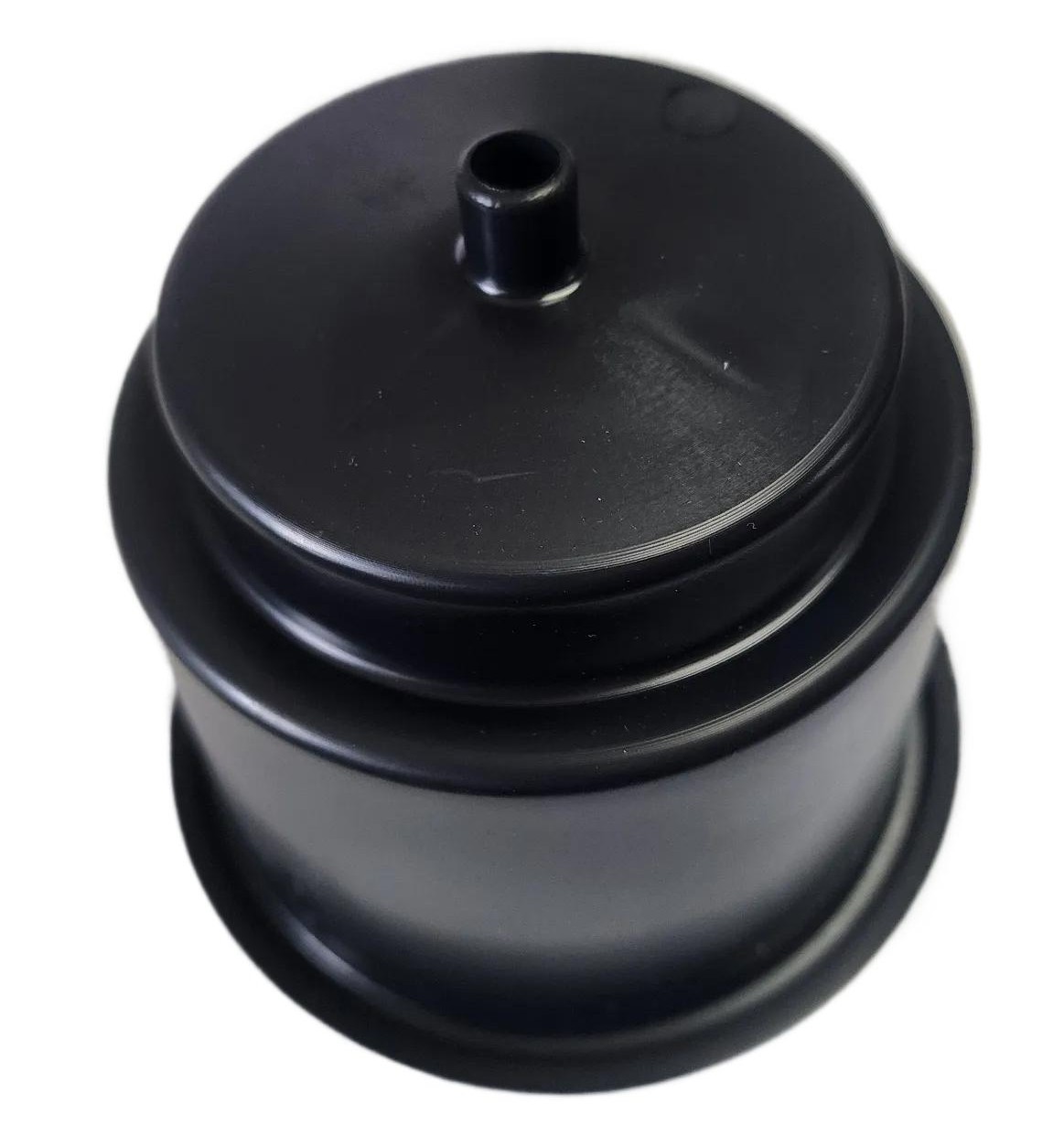

T-H MARINE Recessed Boat Drink Holder – Black 110mm
Manufactured from super tough poly material which resists sunlight and chemicals.
This drink holder has a large diameter lip to provide a neat installation.
A hose tail on the bottom accepts 10mm ID hose so any spills, spray or rainwater can be drained away.
Holds drinks up to 90mm in diameter and accepts stubbies with coolers.

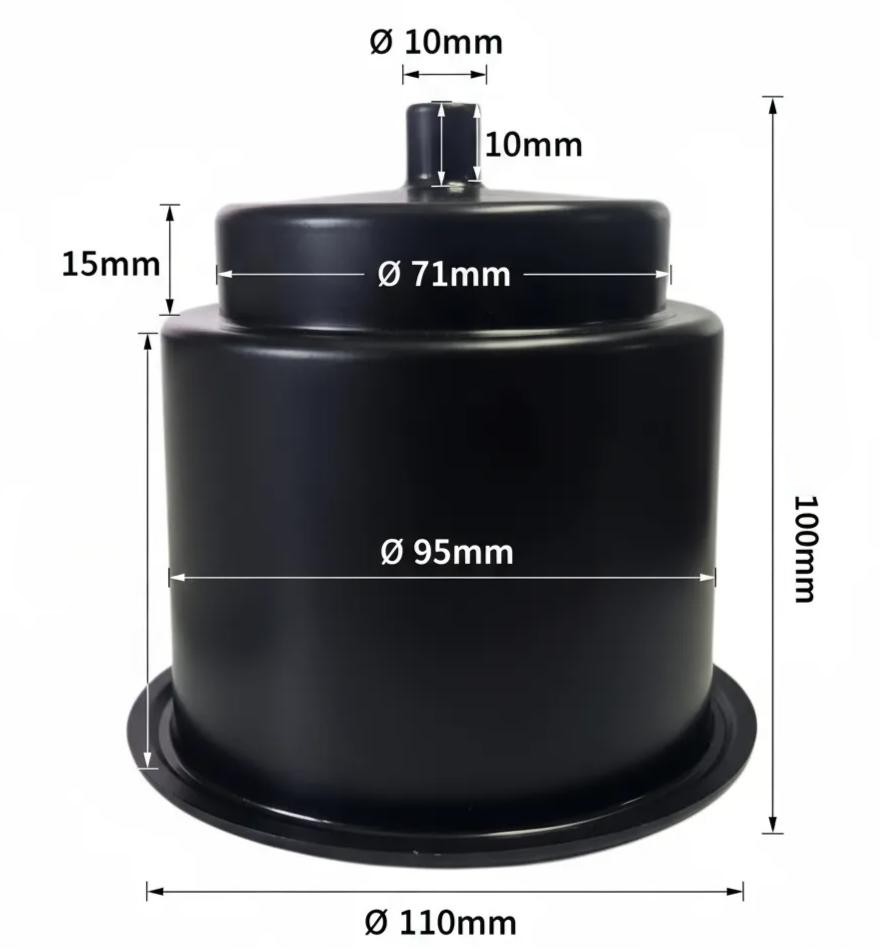

Drain 10mm diameter 10mm length.
Bottom tier diameter 71mm. Bottom tier height 15mm
Bottom of main cup holder 90mm diameter. Under flange to bottom of the main cup tier height approx 62mm
Diameter of outer flange 110mm – Flange thickness 4mm – Flange 9mm wide.
Cut out – diameter under flange of cup holder 95mm
Under flange to bottom of drain approx 96mm
Inside diameter of bottom tier of cup holder is 68mm
Inside diameter of the main cup holder is 91mm
Overall height 100mm
Cut Out Dia.: 95mm Outside Dia.: 110mm Inside Dia.: 90mm Intrusion 88mm
