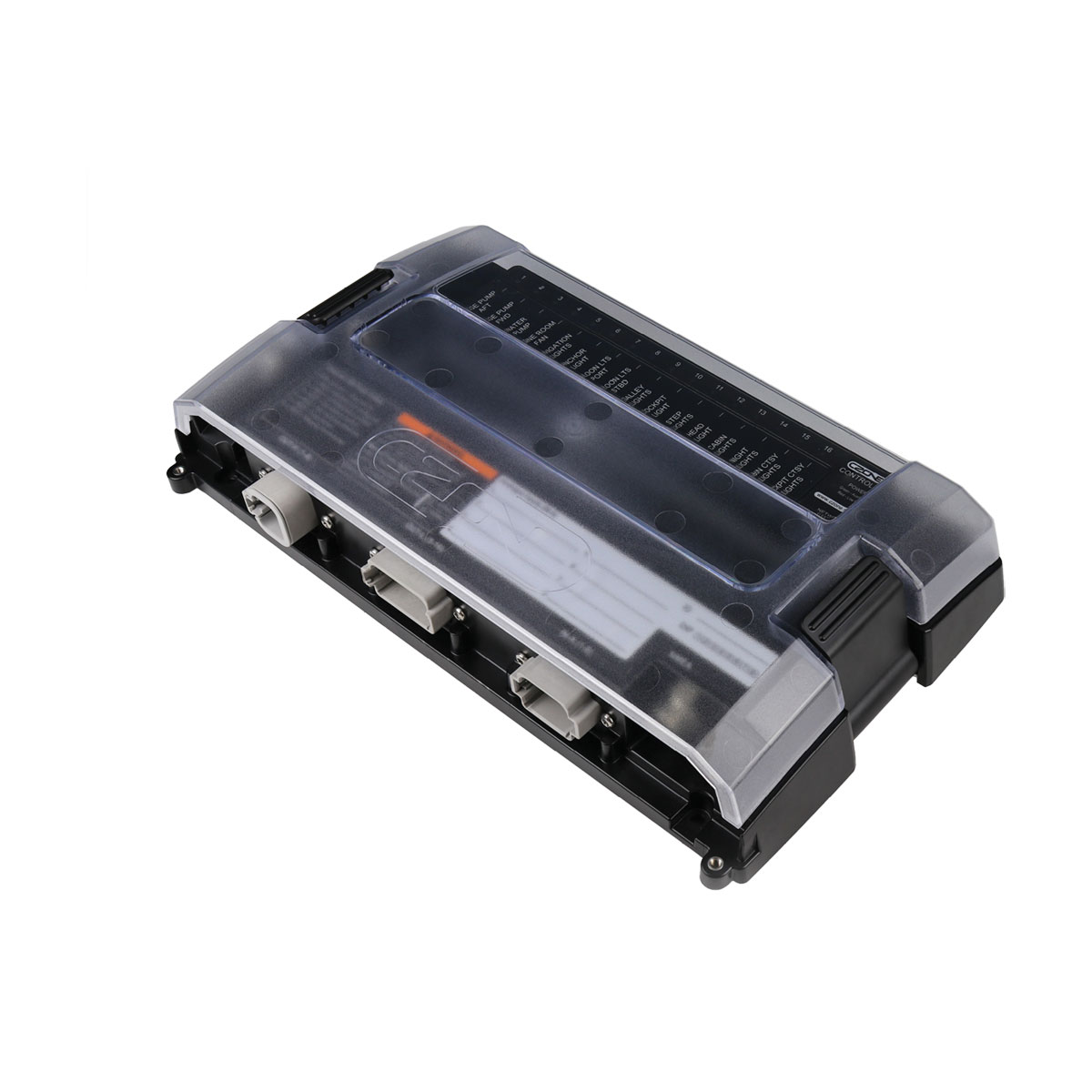

CZONE Control 1 Interface / 80-911-0122-00
- PRODUCT CODE: 112918
- The Control 1 combines multiple input and output devices into a single rugged IPX5 module featuring industry leading CZone digital switching functionality and complete mechanical fuse and bypass on each circuit.
- FEATURES
- Complete CZone Control and Monitoring system in a single box
- Modular design provides system options for wide range of vessels & RV’s
- Compatible with marine multi-function and black box chartplotter/fishfinders
- Equipped with advanced core CZone feature set
- Competitive price point for cost sensitive applications
- ABYC compliant ATC fusing and mechanical bypass for redundancy
- PWM light dimming capability & smooth start
- Monitor tank levels, battery volts, temperature and pressure using industry standard sensors
- Bilge Pump Run Detection allows pump control
and monitoring from a single wire - Status LED’s for all outputs, DC supply & NMEA2000
- Additional volt monitoring on main DC connection and N2K
- In-built load shedding allows non-necessary loads to be turned off to preserve battery life
- USB port allows full system firmware & config
updates (no PC or adapters required)
- SPECIFICATIONS
- Output Channels High: 4 x 25A
- Output Channels High: 12 x 10A Dimmable
- Analogue Inputs: 8 x Analogue Inputs: Positive or Negative Switching,
0-32 Volt, 0-1000 Ohm Resistance & 4-20mA Current - Additional Monitoring: 1x Volt Sense on Main Positive Stud
- Circuit Protection: ATC Fuse with Fuse tripped & fuse in bypass alarms
- NMEA2000 PGN Output: Fluid Level, Pressure, Temperature, Battery Volts
- Connectors: Deutsch DTP and DT
- Maximum Continuous Current: 150A @ 40°C (104°F) – derating above 40°C (104°F)
- Power Supply: M8 (5/16″) Stud Positive, M6 (1/4″) Negative
- Voltage: 9-32V (with Power Available LED)
- Power Consumption: Operating (All Channels On) = 100mA @ 13.2V, Operating (All Channels Off ) = 75mA @ 13.2V
- Circuit Bypass: Mechanical Protection/Bypass All Output Channels
- Bilge Pump Circuits: 4 x Channels High: Integrated manual control & pump
running detection - Ingress Protection: IPx5 (mounted at 0°, +/-90°)
- Communication: NMEA 2000
- Certification: CE, ABYC, NMEA, ISO8846/SAEJ1171 Ignition Protected
- Accessories: SP11112918 C-zone coi/control1 deutsch connector kit
Weight 2 KG, Length 21.1 cm, Height 13.2 cm, Width 35.7 cm
