Description

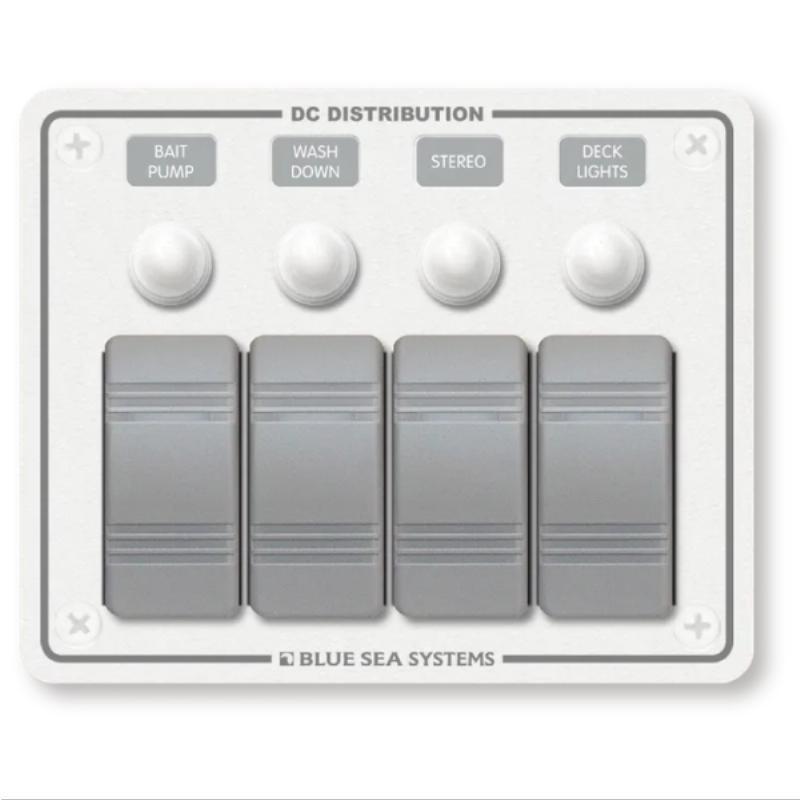

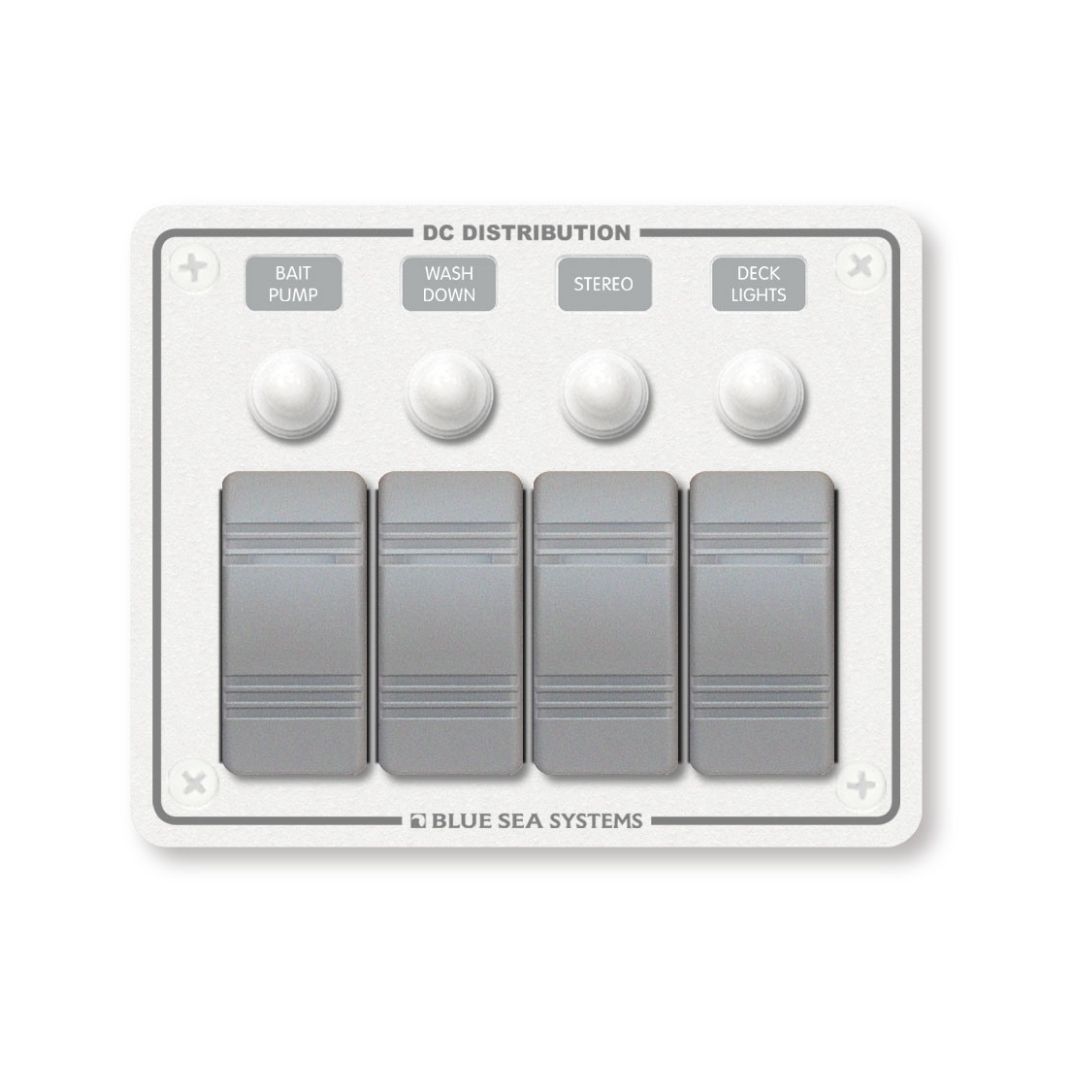

BLUE SEA Contura White Switch Water-Resistant Panel – 4 Position Circuit Breaker / BS-8272
HIGHLIGHTS
- Designed for flybridge and open cockpit applications.
- Panel front is rated IP66—Protected against powerful water jets.
- Ignition protected—safe for installation aboard gasoline powered boats.
- ON-OFF Contura Switches.
- ON indicating LEDs embedded in switch.
- Watertight mounting gasket.
- Push Button Reset-Only circuit breakers with waterproof boots.
SPECIFICATIONS
- PART NUMBER: BS-8272
- POSITIONS: 4
- NOMINAL VOLTAGE: 12V / 24V AC
- PANEL CUMULATIVE RATING: 45A
- SWITCH RATING: 20A @ 12V DC / 15A @ 24V DC
- WEATHERPROOF: WATER RESISTANT
- HEIGHT: 107.95 mm (3.75″)
- WIDTH: 133.35 mm (5.25″)
- DEPTH: 82.55 mm (3.25″)
- WEIGHT: 0.41 kg (0.90 lb)
- COLOR: WHITE
- PUSH BUTTON CIRCUIT BREAKERS: 4
