Description

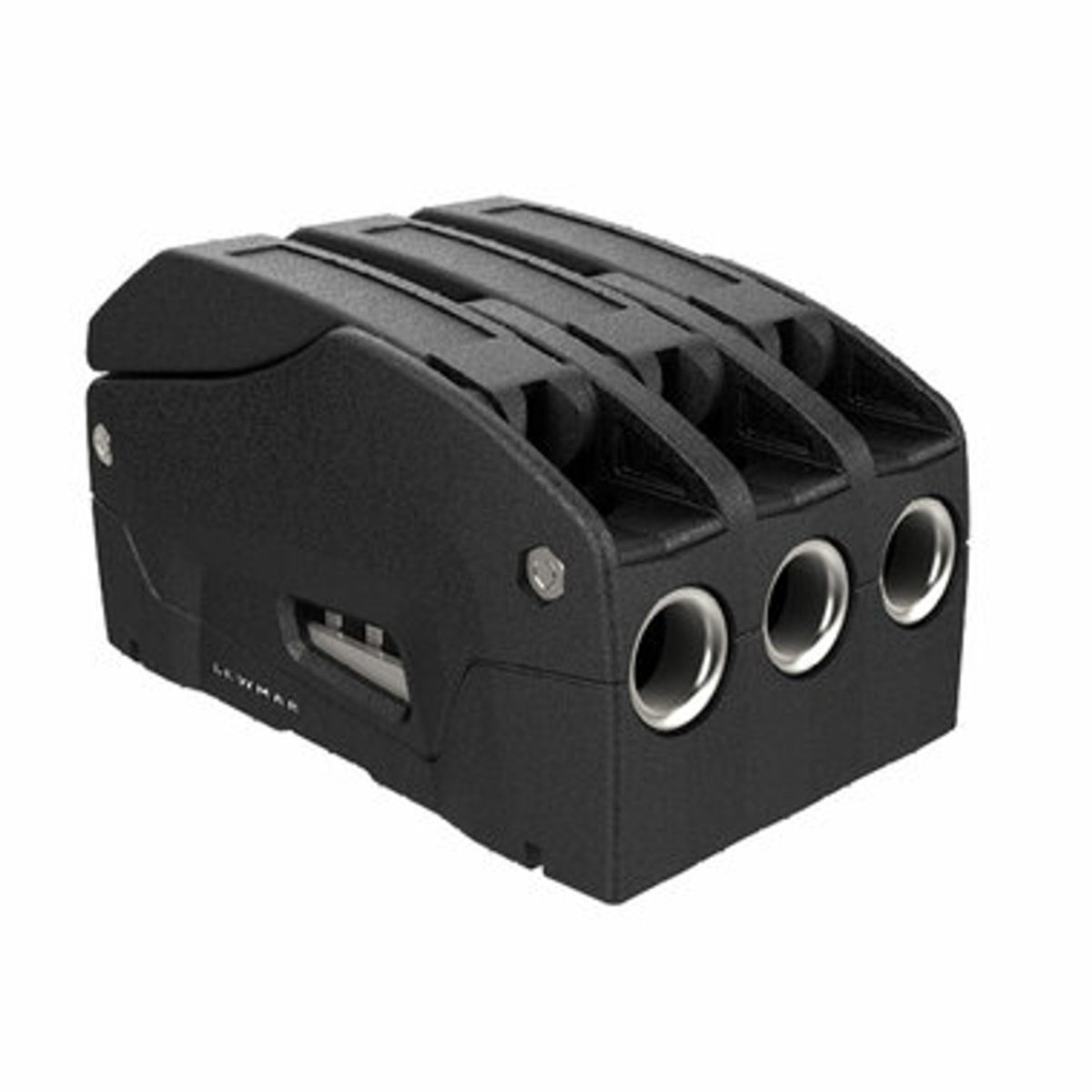

Lewmar Rope Clutch D1 Triple 8-10mm 29101310BK
Lewmar rope clutches have been designed and engineered to provide superior high performance rope holding and release characteristics. With minimal moving parts, the variable geometry handle delivers simple, quick and effortless operation while the unique pattern of dominos provides outstanding holding power and clutching, whilst remaining gentle on ropes to prevent fray. The Lewmar clutch is an excellent choice for high load applications such as Genoa, spinnaker and asymmetric halyards (refer to selection guide), while also ideal for low load applications such as reefing points, topping lifts and outhaul lines on larger vessels.
D1 Features
- High load applications on boats up to 9.7 metres
- Low load applications on larger boats
- 8 mm to 10 mm line size
- 400 kilogram working load limit
Accessories
- SP42420610 D1 Clutch Handle Kit
- 420899 Clutch Label Function Set
Line Size and Holding Load Data
| SKU | Description | Line Size mm | Holding Load kg |
|---|---|---|---|
| 420900 | D1 Single | 6-8 | 300 |
| 420902 | D1 Double | 6-8 | 300 |
| 420904 | D1 Triple | 6-8 | 300 |
| 420906 | D1 Single | 8-10 | 400 |
| 420908 | D1 Double | 8-10 | 400 |
| 420910 | D1 Triple | 8-10 | 400 |
| 420912 | D1 Single | 10-12 | 500 |
| 420914 | D1 Double | 10-12 | 500 |
| 420916 | D1 Triple | 10-12 | 500 |
Size and Dimensions Data
| SKU | Size | Length mm | Width mm | Height mm | A Line Entry mm | B Line Exit mm | C mm | D mm |
|---|---|---|---|---|---|---|---|---|
| 420900 | D1 Single | 126 | 32 | 72 | 27 | 29 | – | 79 |
| 420902 | D1 Double | 126 | 57.85 | 72 | 27 | 29 | 26 | 79 |
| 420904 | D1 Triple | 126 | 83.7 | 72 | 27 | 29 | 26 | 79 |
Lewmar Rope Clutches Dimensions
Warning: Always verify the compatibility of the rope clutch with your specific vessel and line sizes before purchase to avoid operational issues or damage.
| SKU | Description | Line Size mm | Holding Load kg |
|---|---|---|---|
| 420900 | D1 Single | 6-8 | 300 |
| 420902 | D1 Double | 6-8 | 300 |
| 420904 | D1 Triple | 6-8 | 300 |
| 420906 | D1 Single | 8-10 | 400 |
| 420908 | D1 Double | 8-10 | 400 |
| 420910 | D1 Triple | 8-10 | 400 |
| 420912 | D1 Single | 10-12 | 500 |
| 420914 | D1 Double | 10-12 | 500 |
| 420916 | D1 Triple | 10-12 | 500 |
Size and Dimensions Data
| SKU | Size | Length mm | Width mm | Height mm | A Line Entry mm | B Line Exit mm | C mm | D mm |
|---|---|---|---|---|---|---|---|---|
| 420900 | D1 Single | 126 | 32 | 72 | 27 | 29 | – | 79 |
| 420902 | D1 Double | 126 | 57.85 | 72 | 27 | 29 | 26 | 79 |
| 420904 | D1 Triple | 126 | 83.7 | 72 | 27 | 29 | 26 | 79 |
Lewmar Rope Clutches Dimensions
Warning: Always verify the compatibility of the rope clutch with your specific vessel and line sizes before purchase to avoid operational issues or damage.
Line Size (mm): 8-10 Holding Load (kg): 400
