Description

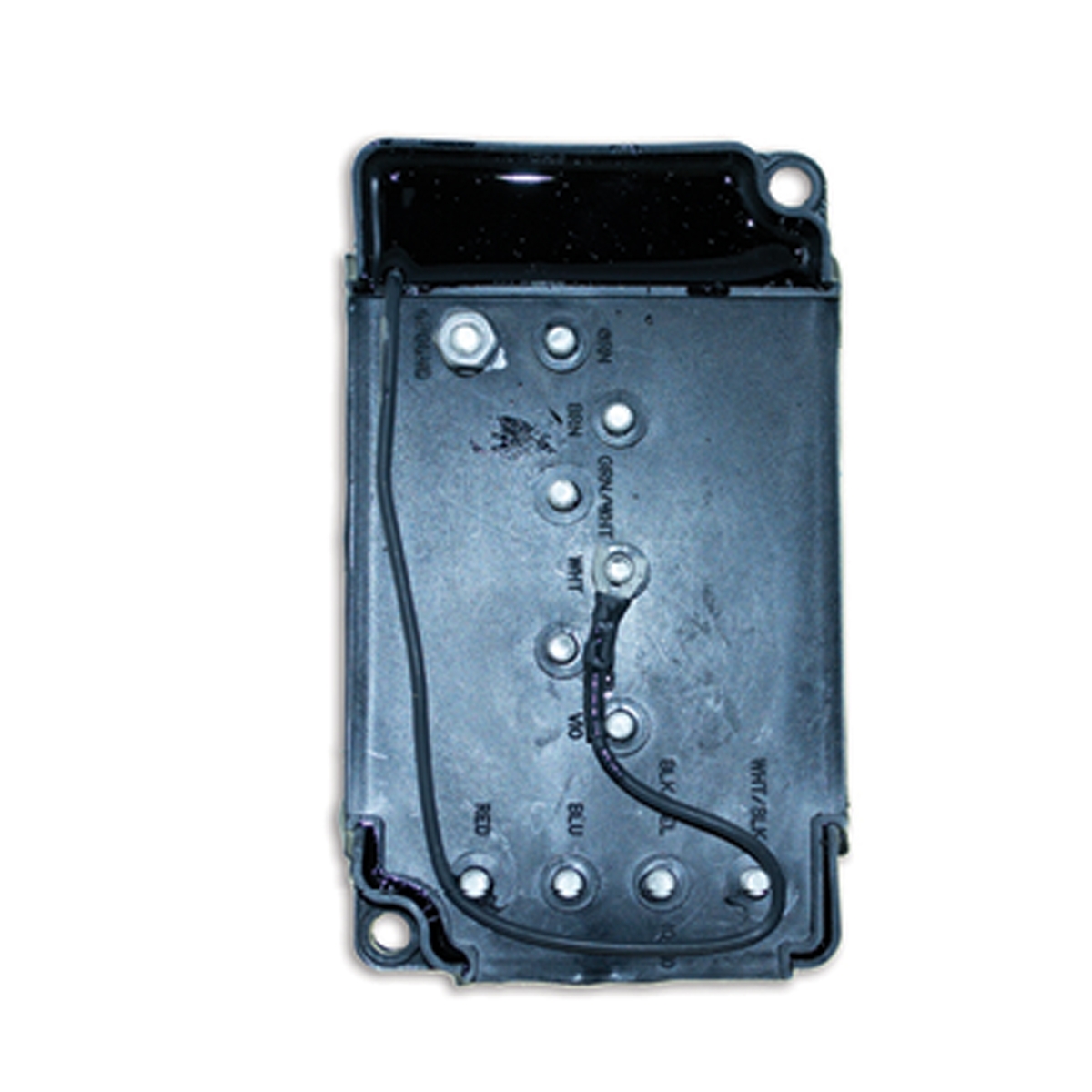

CDI ELECTRONICS Switch Box/Ignition Pack for Mercury/Force 3/6 Cyl. 50-225HP, (1984-1999) / 133-3387
- PRODUCT CODE: CDI133-3387
- SUITS:
- Mercury (1984-1994 (50-90HP – 3 Cyl.)
1976-1999 (90-225HP – 6 Cyl.) - Force (1991-1992 (70 & 90HP)
- Mercury (1984-1994 (50-90HP – 3 Cyl.)
- REPLACES: 332-7778A 9, 332-5524,
332-5524A 1, 332-7778, 332-7778A 1, 332-7778A 3, 332-7778A 5, 332-7778A 6, 332-7778A12 - Does Not Include 3.0L Engines
- MERCURY MARINER APPLICATION CHART
HORSEPOWER MODEL CYLINDER YEAR SERIAL NUMBERS 50 HP — 3 84-90 6428681-D000749 60 HP — 3 84-90 6428681-D000749 65 HP — 3 76 4382057-4571651 70 HP 9 Amp 3 87-89 0A996142-0D283221 70 HP — 3 77-85 4571652-A730815 70 HP 16 Amp 3 87-89 0A996142-0D283222 75 HP 16 Amp 3 87-93 0A996142-0D283221 75 HP 9 Amp 3 87-93 0C221500-0D283221 80 HP 16 Amp/9 Amp 3 87-93 0A996142-0D283221 90 HP Elec Str 3 92-94 0C222000-0D283221 90 HP Elec Str 3 87-92 0A996142-0C221999 90 HP Inline 6 79 5299506-5595646 90 HP Inline 6 79-81 5594657-6026608 90 HP Inline 6 82-86 6026609-0B110053 105 HP Jet 6 92-95 0D082000-0G201874 105 HP Jet 6 96-00 0G303046-0G760500 115 HP Inline 6 79-80 5314656-5600966 115 HP Inline 6 80-82 5600967-6051525 115 HP Inline 6 82-89 6051526-0C10000 135 HP — 6 85-88 0A904646-0C100860 135 HP — 6 89-90 0C100861-0C239552 135 HP 16 Amp 6 90-91 0C239553-0D081999 135 HP 40 Amp 6 90-91 0C239553-0D081999 135 HP 40 Amp 6 92-95 0D082000-0G201874 135 HP 42 Amp 6 96-99 0G303046-0G960499 140 HP Inline 6 79 5327663-5625107 140 HP — 6 80-81 5625108-5669999 140 HP Jet 6 92-95 0D082000-0G201874 140 HP Jet 6 96-99 0G303046-0G960499 150 HP XR2 Mag 6 78-86 04868998-0A904645 150 HP — 6 85-88 0A904646-0C100860 150 HP — 6 89-90 0C100861-0C239552 150 HP 16 Amp, 40 Amp 6 90-91 0C239553-0D081999 150 HP 40 Amp 6 92-95 0D082000-0G303045 150 HP 2 Stk. 6 96-99 0G303046-0G960499 175 HP Black Max 6 76-79 4301235-5593736 175 HP Black Max 6 79-84 5593737-6618750 175 HP 9 Amp, 15 Amp 6 85-88 6618751-0C100860 175 HP 40 Amp 6 89-90 0C100861-0C239552 175 HP 16 Amp, 40 Amp 6 90-91 0C239553-0D081999 175 HP Xri EFI 6 92-95, 96-00 0D082000-0G303045 175 HP 2 Stk. 6 96-99 0G303046-0G960499 200 HP Black Max 6 78-79 4839034-5363917 200 HP Black Max 6 79-81 5363918-6073191 200 HP 15 Amp 6 82-90 6073192-0C239553 200 HP 16 Amp 6 85-90 6625221-0C239553 200 HP Xri 40 Amp 6 89-91 0C100861-0G303045 200 HP 16 Amp 6 89-91 0D082000-0G201874 200 HP 40 Amp 6 89-91 0G201875-0G30345 200 HP 2 Stk. 6 92-00 0G303046-0G960499 200 HP 2.5L EFI 6 92-99 0D082000-0G840500 220 HP — 6 87-88 0B117316-0C100860 225 HP — 6 81-93 5628028-0D280812 225 HP 2.5L EFI 6 95-00 0D935638-0G569900 - CHRYSLER FORCE APPLICATION CHART
HORSEPOWER YEAR MODEL 70 HP 91-92 E000001-E009499 90 HP 91 L Drive B & D 90 HP 91 L Drive B & D 90 HP 91 E000001-E009499 90 HP 91 E009500-E039023 Weight 0.4 KG, Length 20 cm, Height 6 cm, Width 12 cm
Additional informationAdditional information
Condition New
