Description

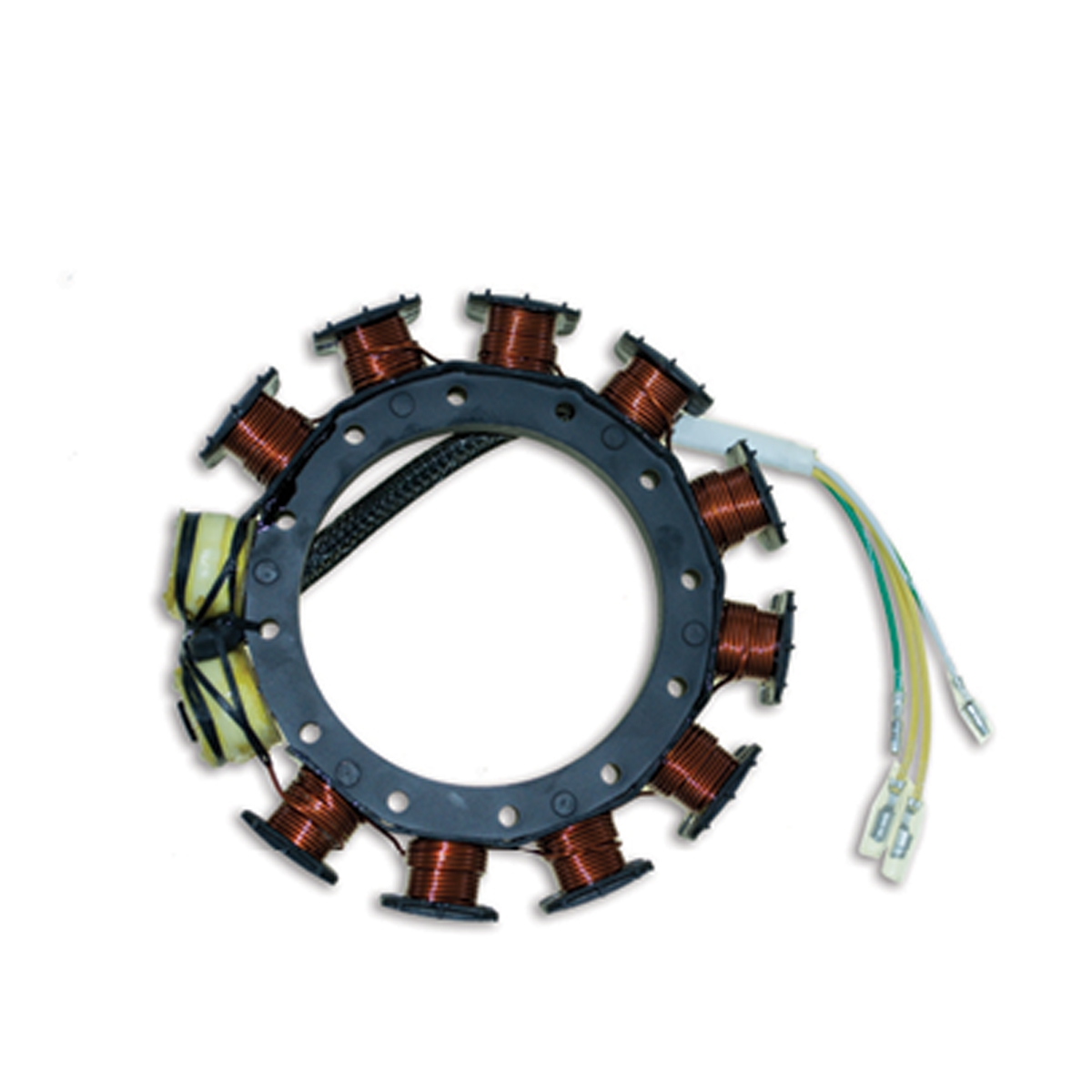

CDI ELECTRONICS Stator for Mercury/Mariner with CDM Modules, 2/3/4 Cyl 16 Amps, 30-125HP (1995-2007) / 174-2075K 2
- PRODUCT CODE: CDI174-2075K 2
- SUITS:
- 1995-2006 (30 & 40HP – 2 Cyl.)
- 1996-2007 (30 JET, 40,50,55,60,65 JET,75 & 90HP – 3 Cyl.)
- 1995-2006 (80 JET, 100,115,120 JET & 125HP – 4 Cyl.) w/CDM Modules
- REPLACES: 398-9873A19, 398-9873A22, 398-
9873A28, 398-832075A 3, 398-832075A 4, 398-832075A 6, 398-832075A12, 398-832075A17, 398-832075A21, 398-832075T18 - *Not for use with Flywheels with Bolted-In Magnets.
- MERCURY MARINER APPLICATION CHART
HORSEPOWER MODEL CYLINDER YEAR SERIAL NUMBER 30 HP Elec Str. 2 96-99 0G380075-0G589999 30 HP Elec Str. 2 00-05 0G590000-0G760299 30 HP Elec Str. 2 99-06 0G760300-0T979999 30 Jet 3 98-01 0G590000-0T408999 40 HP Elec Str. 2 95-96 0G055314-0G380074 40 HP Elec Str. 2 96-99 0G380075-0G589999 40 HP Elec Str. 2 00-05 0G590000-0T999999 40 HP Elec Str. 3 97-05 0G590000-0T999999 40 HP Jet 3 98-01 0G590000-0T408999 40 HP Jet Elec Str. 3 02-05 0T178500-0T979999 50 HP Elec Str. 3 97-06 OG531301-OT999999 50 HP Jet 3 98-05 0G590000-0T408999 55 HP Elec Str. 3 98-07 0G590000-OT980000 60 HP Elec Str. 3 98-07 0G590000-OT980000 65 HP Jet 3 96-06 0G760300-1B000001 75 HP 2 Stk. 3 96-06 0G438000-1B360999 80 HP Jet 4 96-06 0G438000-1B000001 90 HP Elec Str. 3 96-06 0G438000-1B360999 100 HP — 4 96-00 0G438000-0G965520 115 HP — 4 96-06 0G438000-1B000001 120 HP XRSportJet 4 95-00 0E141089-0E379999 125 HP — 4 96-06 0G438000-1B000001 Weight 1.4 KG, Length 21 cm, Height 7 cm, Width 24 cm
