Description

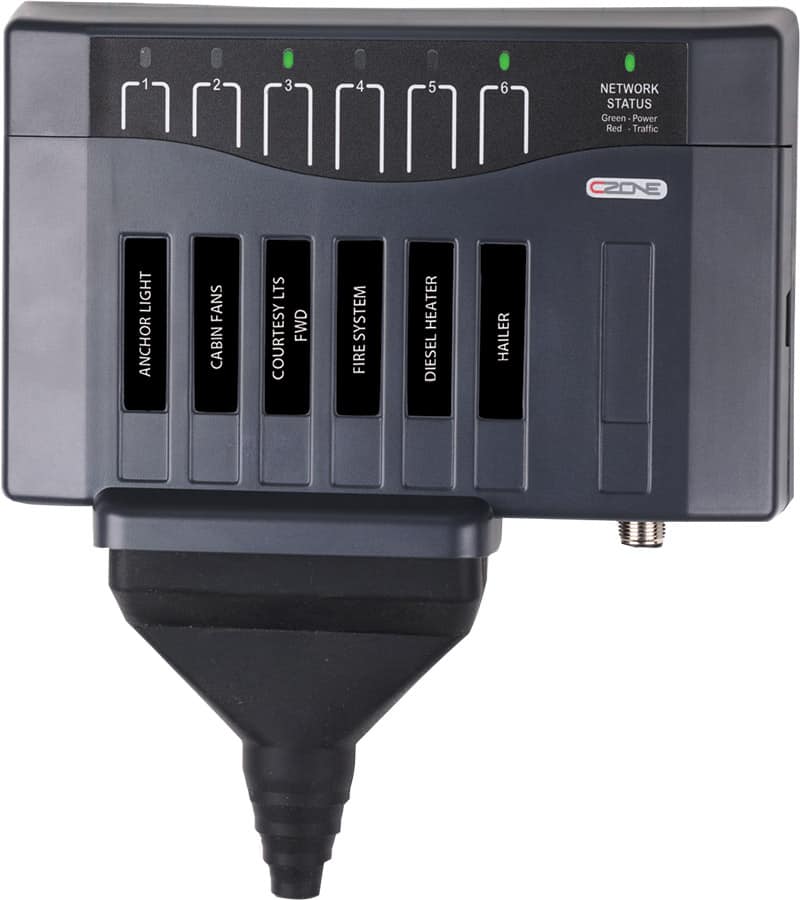

C-Zone Output Interface
C-Zone Output Interface The Output Interface OI provides an intelligent replacement for traditional circuit breaker and fuse panels It has 6x high power robust output channels which provide the power supply control and fusing for a circuit as well as integrating many other built in features such as timers and dimmers Connection to the unit is simple a large 6 way plug allows connections to cables of up to 16mm 6AWG in size or multiple smaller conductors No need for specialized crimp terminals and expensive crimp tools to be carried for terminations to C-Zone just a blade screwdriver A protective flexible boot offers protection to the connections from harsh environment conditions Features 4 levels of backup fusing including manual override as required by ABYC Multiple channels can be bridged together to offer higher current switching Power consumption 12V 85 mA standby 60 mA Dimensions WxHxD 200x128x45mm Small non metallic easy to install case 6 x 20 amps circuits IPX5 water ingress protection Programmable software fuse sizes
