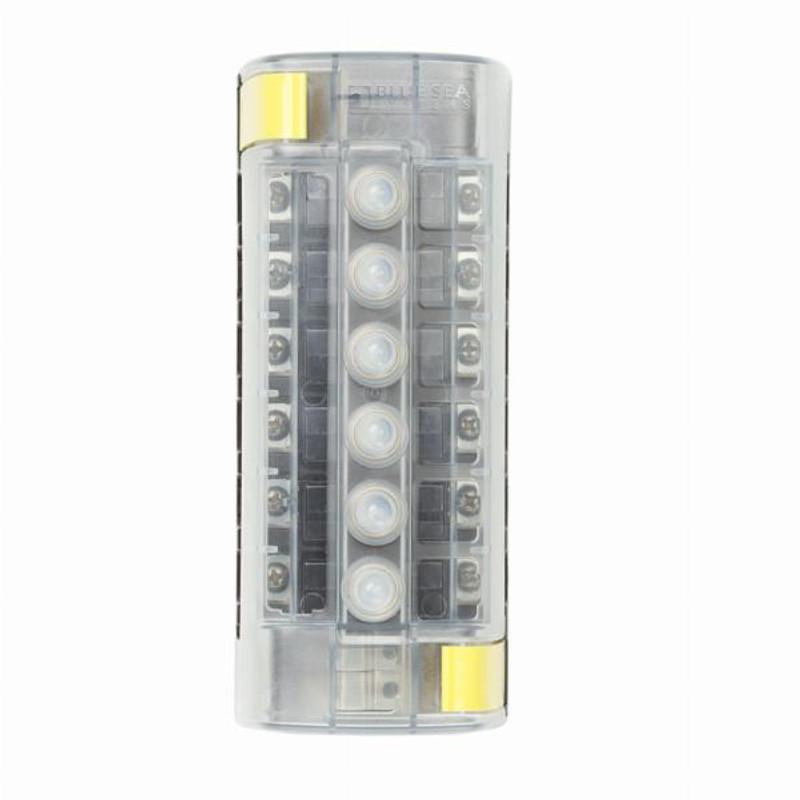

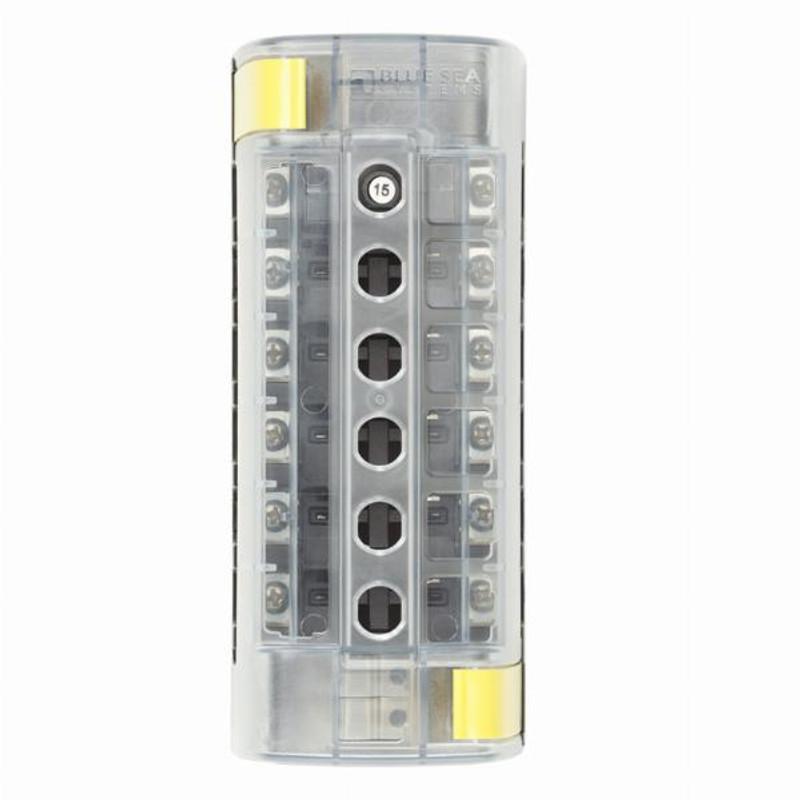

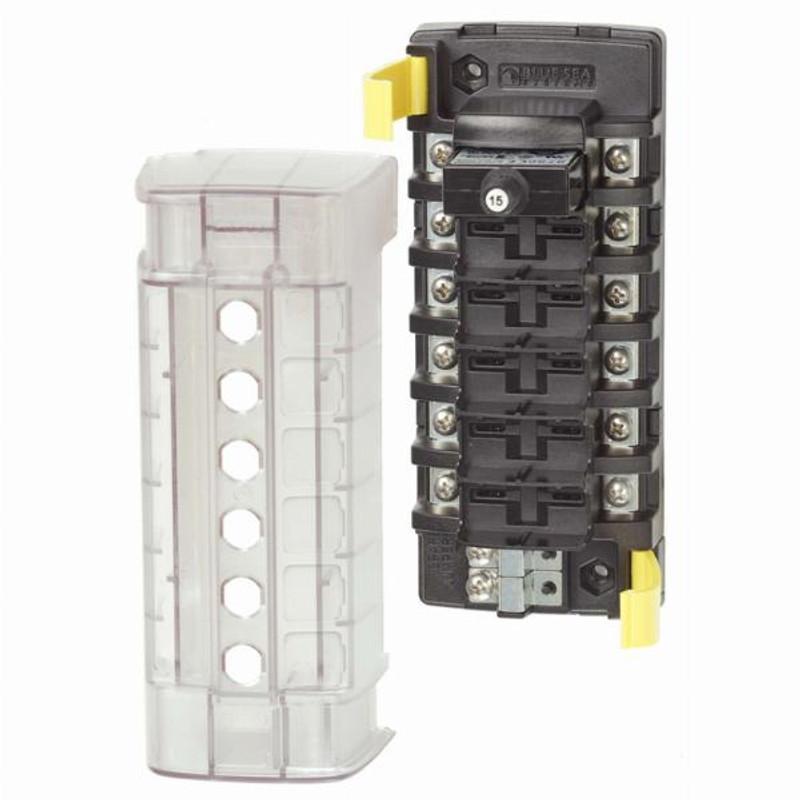

BLUE SEA ST CLB Circuit Breaker Block – 6 Independent Circuits / BS-5050
The advantage of a resettable circuit breaker over a fuse is well known however people find circuit breakers more expensive and difficult to install.
The ST CLB Circuit Breaker Block solves this issue by using the compact, snap-in-place CLB resettable circuit breaker which makes breakers as easy to install as a fuse.
HIGHLIGHTS
- Quick connect clips allow circuit breakers to snap easily into place.
- Tin-plated copper busses and screw terminals.

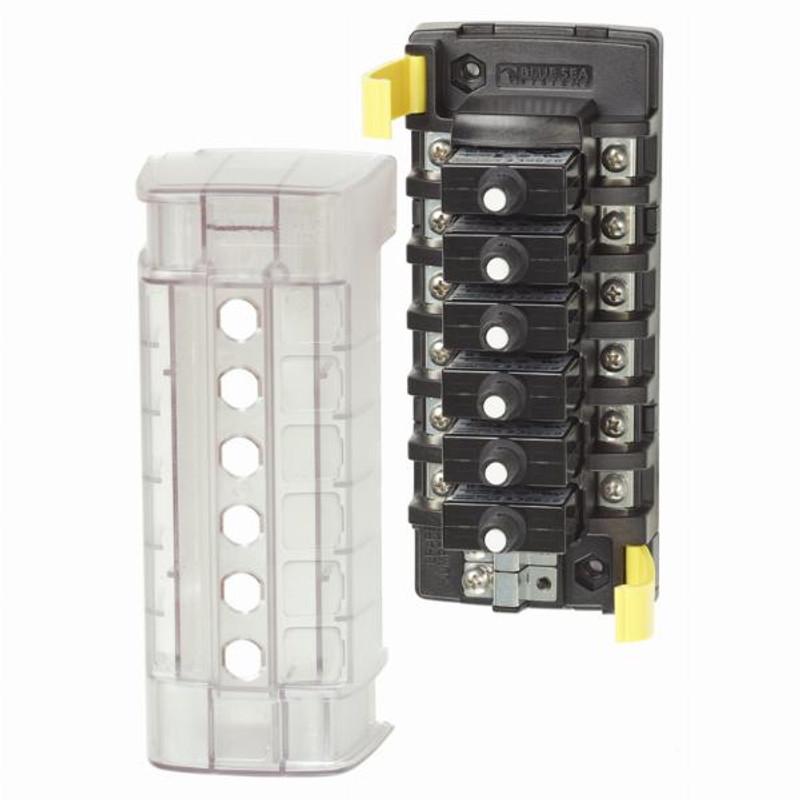

- Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements.
- Easy to open clip on cover.
- Breakouts allow wire access in two directions.
- Accepts ring terminals.
- Optional push button waterproof boots or dress nuts can be installed over cover.
- Accepts square labels.
SPECIFICATIONS
- PART NUMBER: BS-5050
- CIRCUITS: 6
- MAXIMUM AMPERAGE: 32A (PER CIRCUIT) / 40A (PER JUMPED CIRCUIT GROUP)
- MAXIMUM VOLTAGE: 32V DC
- MOUNTING: #8 Screw (M4) or #8 Nut
- SOURCE: INDEPENDENT SOURCE
- MINIMUM OPERATING TEMPERATURE: -10° C
- MAXIMUM OPERATING TEMPERATURE: 60° C

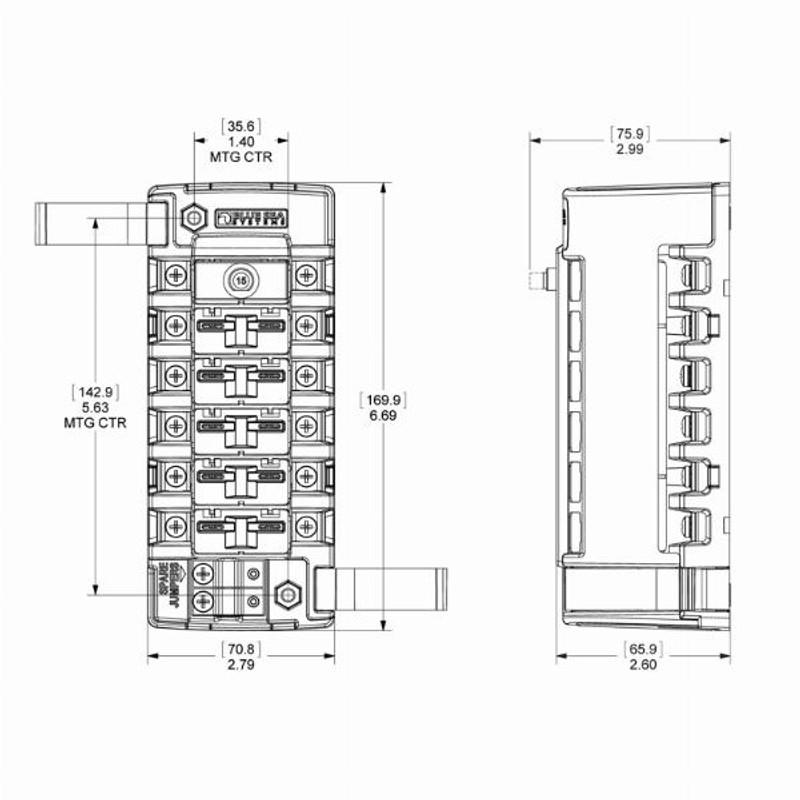

- MOUNTING CENTERS: 5.63″ / 143mm
- SCREW TERMINAL TYPE: #8-32 Screws with Captive Star Lock Washer
- HEIGHT: 169.93 mm (6.69″)
- WEIGHT: 0.34 kg (0.75lb)
