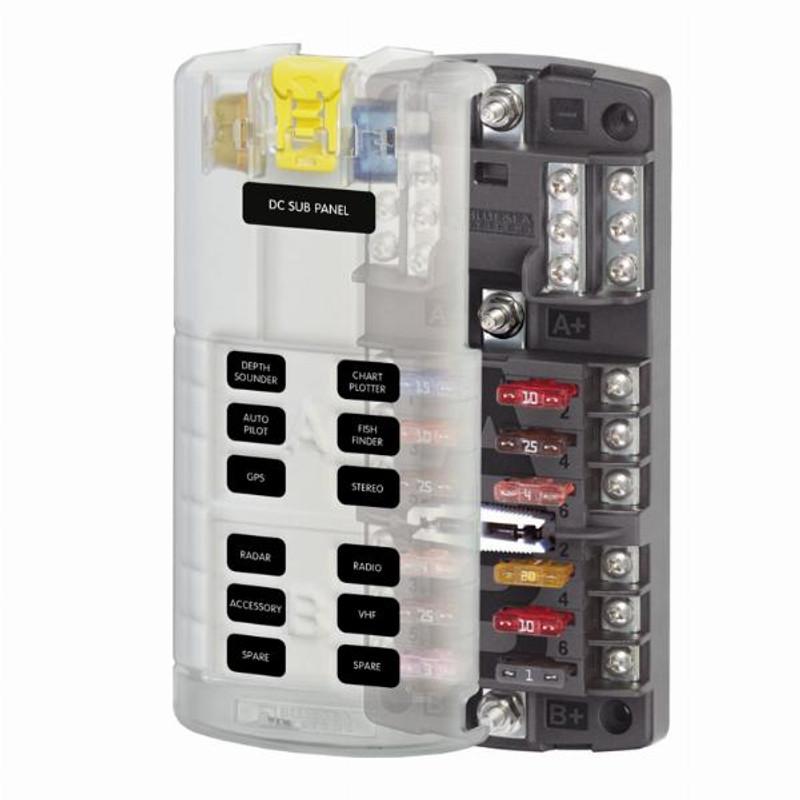

BLUE SEA – ST Blade Split Bus Fuse Block / BS-5032B
Split Bus Fuse Block with ground for use when a mix of switched and 24-hour circuits are desired in the same block.
HIGHLIGHTS
- Provides two isolated groups of six ATO/ATC circuits.
- For use with either two isolated batteries or with a single battery providing a mix of 24 hour and switched circuits.
- Screw terminals for securing wires accept ring terminals.
- One-piece stainless flange nuts ensure safe and secure connections.
- Clear insulating cover with label recesses and storage for two fuses, satisfies ABYC/USCG insulation requirements.
- Easy to open, push button latch for easy access to fuses.
- Tin-plated copper buses and fuse clips.
- Fuses sold separately.
SPECIFICATIONS
- PART NUMBER: BS-5032B
- CIRCUITS: 12
- MAXIMUM AMPERAGE: 30A per circuit / 100A total
- MAXIMUM VOLTAGE: 32V DC
- MOUNTING: #8 Screw (M4)
- NEGATIVE BUS: #10-32 Stud
- POSITIVE BUS: #10-32 Stud
- RECOMMENDED TORQUE: 24 in-lb (2.71 N·m)
- SCREW TERMINAL TORQUE: 18 in-lb (2.03 Nm)
- SCREW TERMINAL TYPE: #8-32 with Captive Star Lockwasher
- WEIGHT: 0.34 kg (0.75 lb)
