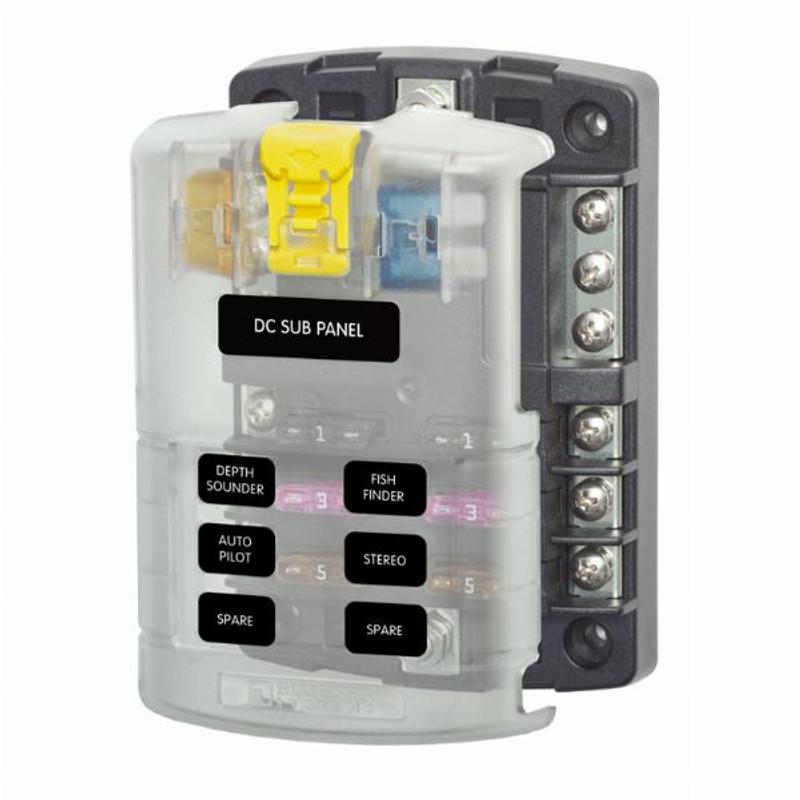

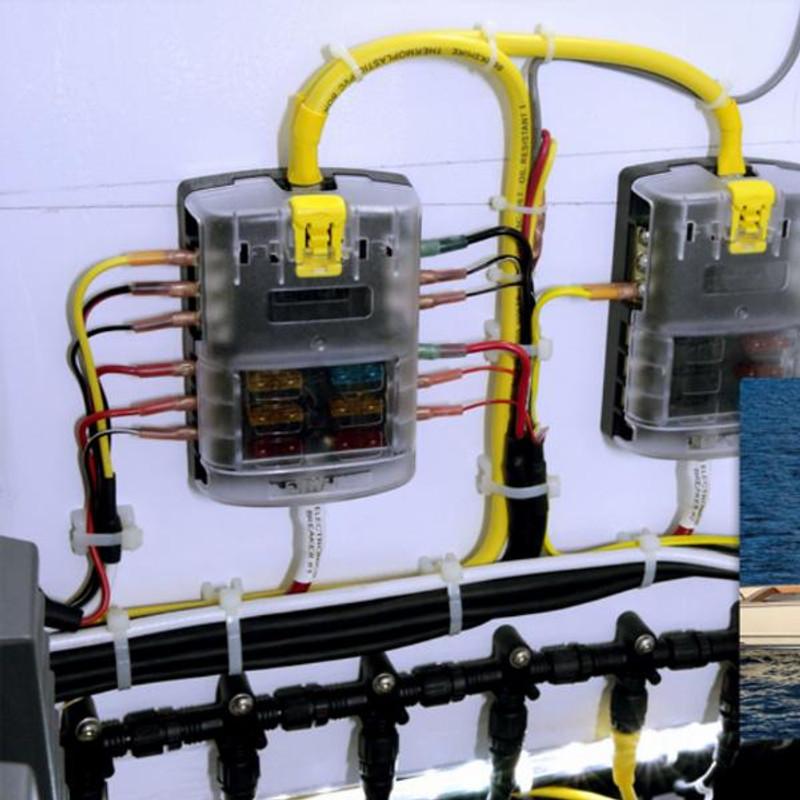

BLUE SEA – ST Blade Fuse Block – 6 Circuits with Negative Bus and Cover / BS-5025B
Consolidates branch circuits and in-line fuses.
HIGHLIGHTS
- Positive distribution bus with #10-32 stud.
- Can be used for 24-hour circuits.
- Cover satisfies ABYC/USCG requirements for insulation, incorporates an easy to open push button latch providing easy access to fuses, storage for two spare fuses, and label recesses that accept Blue Sea Systems
- Fuse blocks with covers include 20 write-on circuit labels.
- Tin-plated copper buses and fuse clips.
- Accepts ring or snap fork type terminals.
- Accepts ATO and ATC fast acting blade fuses.
- Fuses & Labels sold separately.
SPECIFICATIONS
- PART NUMBER: BS-5025B
- CIRCUITS: 6
- MAXIMUM AMPERAGE: 100A per block / 30A per circuit
- MAXIMUM VOLTAGE: 32V DC
- MOUNTING: #8 Screw (M4)
- POSITIVE BUS: #10-32 Stud
- RECOMMENDED TORQUE: 24 in-lb (2.71 N·m)
- SCREW TERMINAL TORQUE: 18 in-lb (2.03 Nm)
- SCREW TERMINAL TYPE: #8-32 Screws with captive star lock washer
- WEIGHT: 0.25 kg (0.55 lb)

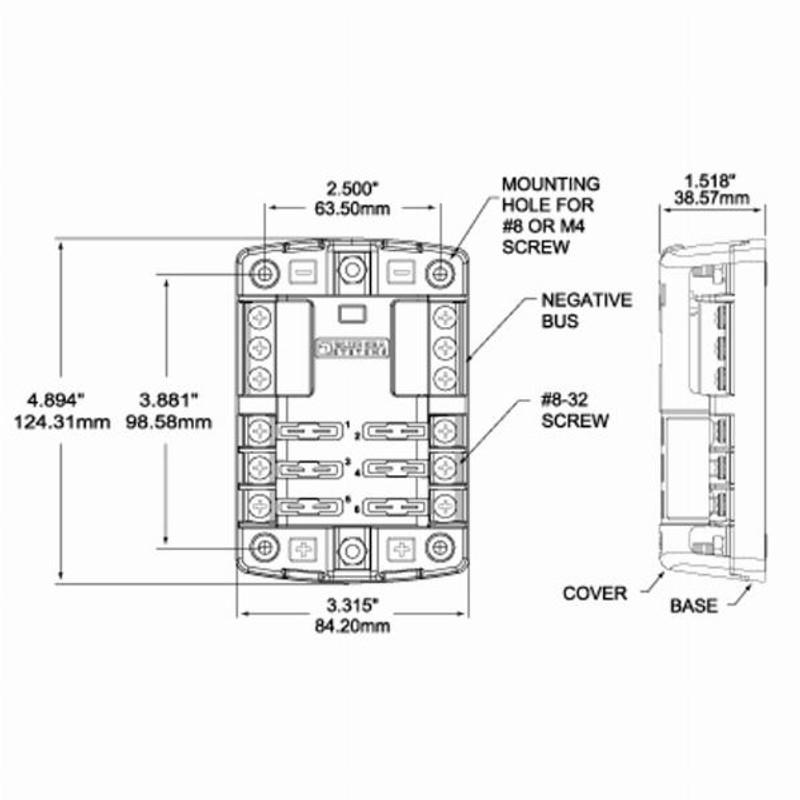

OVERALL DIMENSIONS (LENGTH x WIDTH x HEIGHT): 99mm x 184mm x 46mm
Bulk package version – same product – no retail packaging- no labels.
| SKU | BLA Code | Circuits | Negative Bus | Positive Bus | Length (mm) | Width (mm) | Height (mm) |
|---|---|---|---|---|---|---|---|
| BS-5025 | BS-5025B | 6 | #10-32 stud | #10-32 stud | 124 | 84 | 39 |
| BS-5026 | BS-5026B | 12 | #10-32 stud | #10-32 stud | 164 | 84 | 39 |
| BS-5028 | BS-5028B | 6 | – | #10-32 stud | 93 | 84 | 39 |
| BS-5029 | BS-5029B | 12 | – | #10-32 stud | 132 | 84 | 39 |
| Accessory | SKU |
|---|---|
| Label Set | BS-8214 |
‘B’ – Denotes bulk packed item
