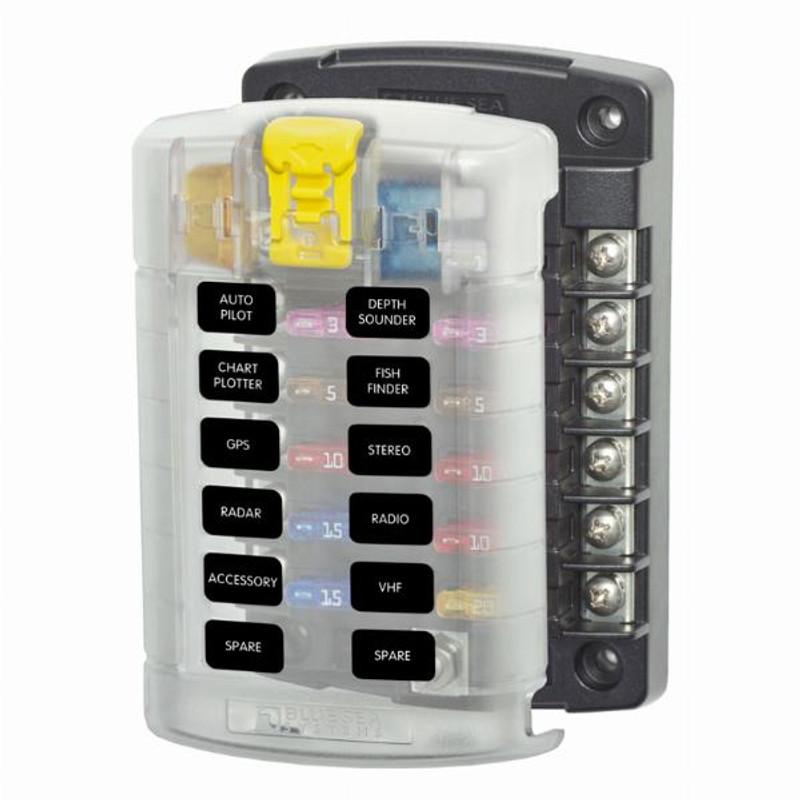

BLUE SEA – ST Blade Fuse Block – 12 Circuits with Cover / BS-5029B
Consolidates branch circuits and in-line fuses.
HIGHLIGHTS
- Positive distribution bus with #10-32 stud.
- Can be used for 24-hour circuits.
- Cover satisfies ABYC/USCG requirements for insulation, incorporates an easy to open push button latch providing easy access to fuses, storage for two spare fuses, and label recesses that accept Blue Sea Systems’ Small Format Labels for circuit identification.
- Tin-plated copper buses and fuse clips.
- Accepts ring or snap fork type terminals.
- Accepts ATO and ATC fast acting blade fuses.
- Fuses & Labels sold separately.
SPECIFICATIONS
- PART NUMBER: BS-5029B
- CIRCUITS: 12
- MAXIMUM AMPERAGE: 100A per block / 30A per circuit
- MAXIMUM VOLTAGE: 32V DC
- MOUNTING: #8 Screw (M4)
- POSITIVE BUS: #8 Screw (M4)
- RECOMMENDED TORQUE: 24 in-lb (2.71 N·m)
- SCREW TERMINAL TORQUE: 18 in-lb (2.03 Nm)
- SCREW TERMINAL TYPE: #8-32 Screws with captive star lock washer
- WEIGHT: 0.31 kg (0.68 lb)

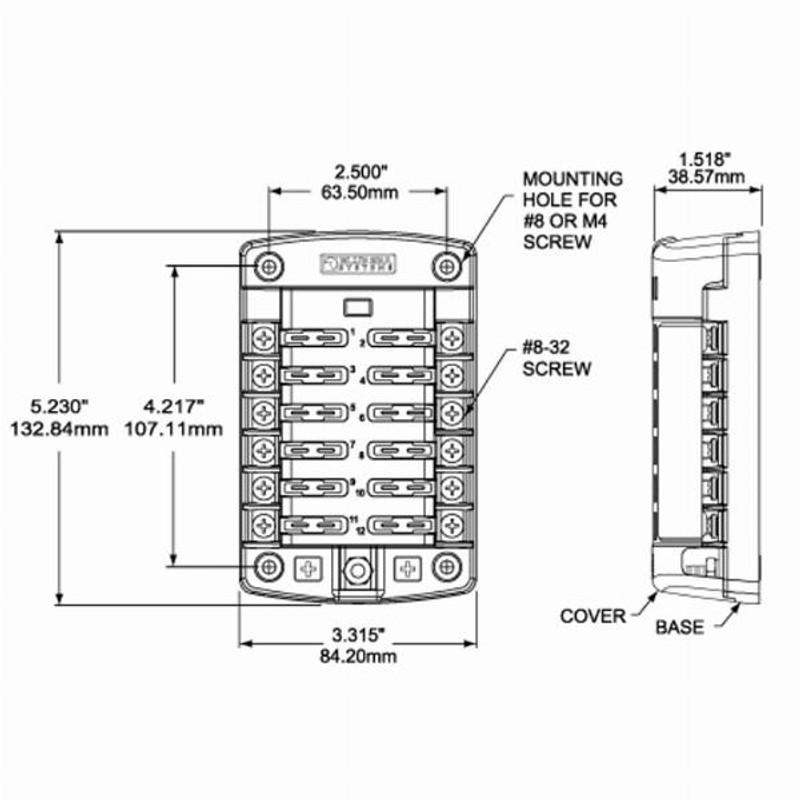

OVERALL DIMENSIONS (LENGTH x WIDTH x HEIGHT): 99mm x 201mm x 45mm
Bulk package version – same product – no retail packaging- no labels.
| SKU | BLA Code | Circuits | Negative Bus | Positive Bus | Length (mm) | Width (mm) | Height (mm) |
|---|---|---|---|---|---|---|---|
| BS-5025 | BS-5025B | 6 | #10-32 stud | #10-32 stud | 124 | 84 | 39 |
| BS-5026 | BS-5026B | 12 | #10-32 stud | #10-32 stud | 164 | 84 | 39 |
| BS-5028 | BS-5028B | 6 | – | #10-32 stud | 93 | 84 | 39 |
| BS-5029 | BS-5029B | 12 | – | #10-32 stud | 132 | 84 | 39 |
| Accessory | SKU |
|---|---|
| Label Set | BS-8214 |
‘B’ – Denotes bulk packed item
