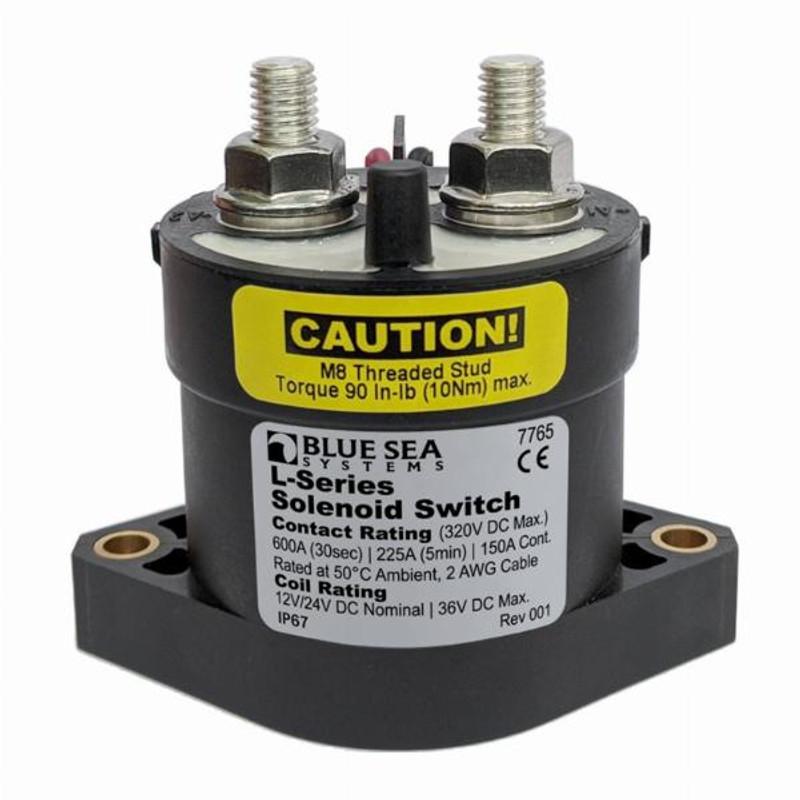

BLUE SEA Solenoid L-Series – 150A 12/24V / BS-7765
Ideal for switching DC subpanels, thrusters, windlass, inverters and other medium-amp DC loads.
HIGHLIGHTS
- Amperage Operating Current continuous: 0.13A @ 12 V, 0.07A @ 24 V.
- Amperage Operating Current when changing state: 3.8A.
- Continuous duty, SPST – Normally Open.
- Hermetically sealed contacts.
- Activated by a low amperage ON-OFF switch mounted anywhere.
- Coil control circuit minimizes heating and amperage draw.
- No external coil suppression required.
SPECIFICATIONS
- PART NUMBER: BS-7765
- CONTROL CIRCUIT VOLTAGE: 9-36V DC (12/24V nominal)
- CONTROL CIRCUIT CONNECTION: 22 AWG Tinned Wire
- CONTACT VOLTAGE: 320V DC
- AMPERAGE OPERATING CURRENT CONTINUOUS: 0.13A @ 12 V, 0.07A @ 24 V
- AMPERAGE OPERATING CURRENT WHEN CHANGING STATE: 3.8A
- TERMINAL STUD: M8 (accepts 5/16″ terminals)
- TERMINAL STUD TORQUE: 90 in-lb (10.17 Nm) max
- CONTINUOUS RATING: 150A 2 (AWG Cable in 50°C ambient)
- INTERMITTENT RATING: 225A (5 min) (2 AWG Cable in 50°C ambient)
- CRANKING RATING – 30 SEC: 600A 2 (AWG Cable in 50°C ambient)
- CONTACT FORM: SPST-NO

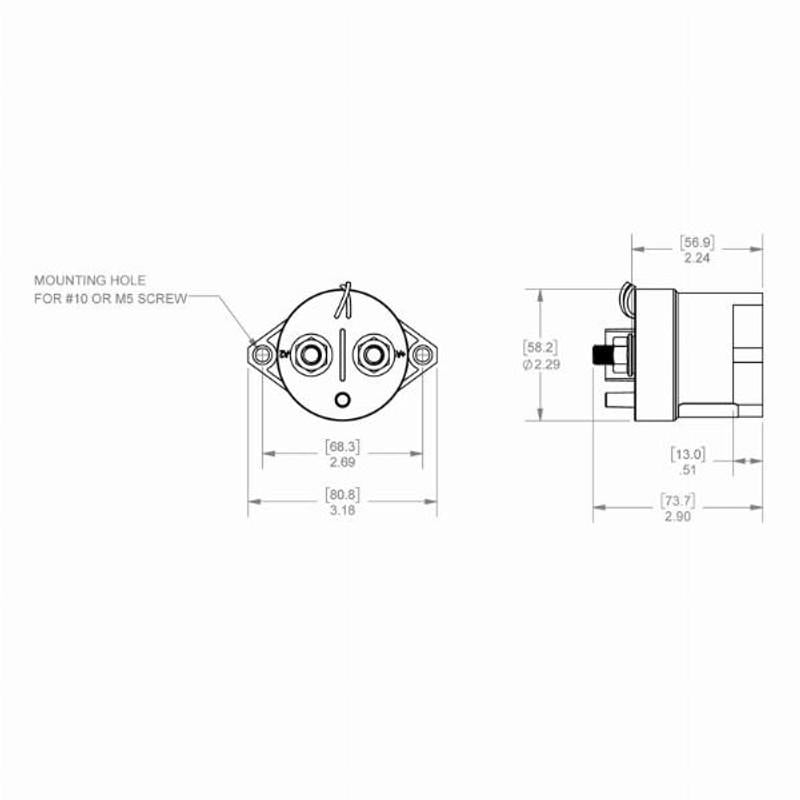

- MOUNTING SCREW: #10 or M5
- MOUNTING SCREW TORQUE: 30 in-lb (3.39 Nm) max maximum torque (15 to 30 in-lb range), 15 in-lb (1.69 Nm) min minimum torque (15 to 30 in-lb range)
- OPERATING TEMPERATURE RANGE: –40°C to +85°C
- WEIGHT: 0.95 lb (0.43 kg)
