Description

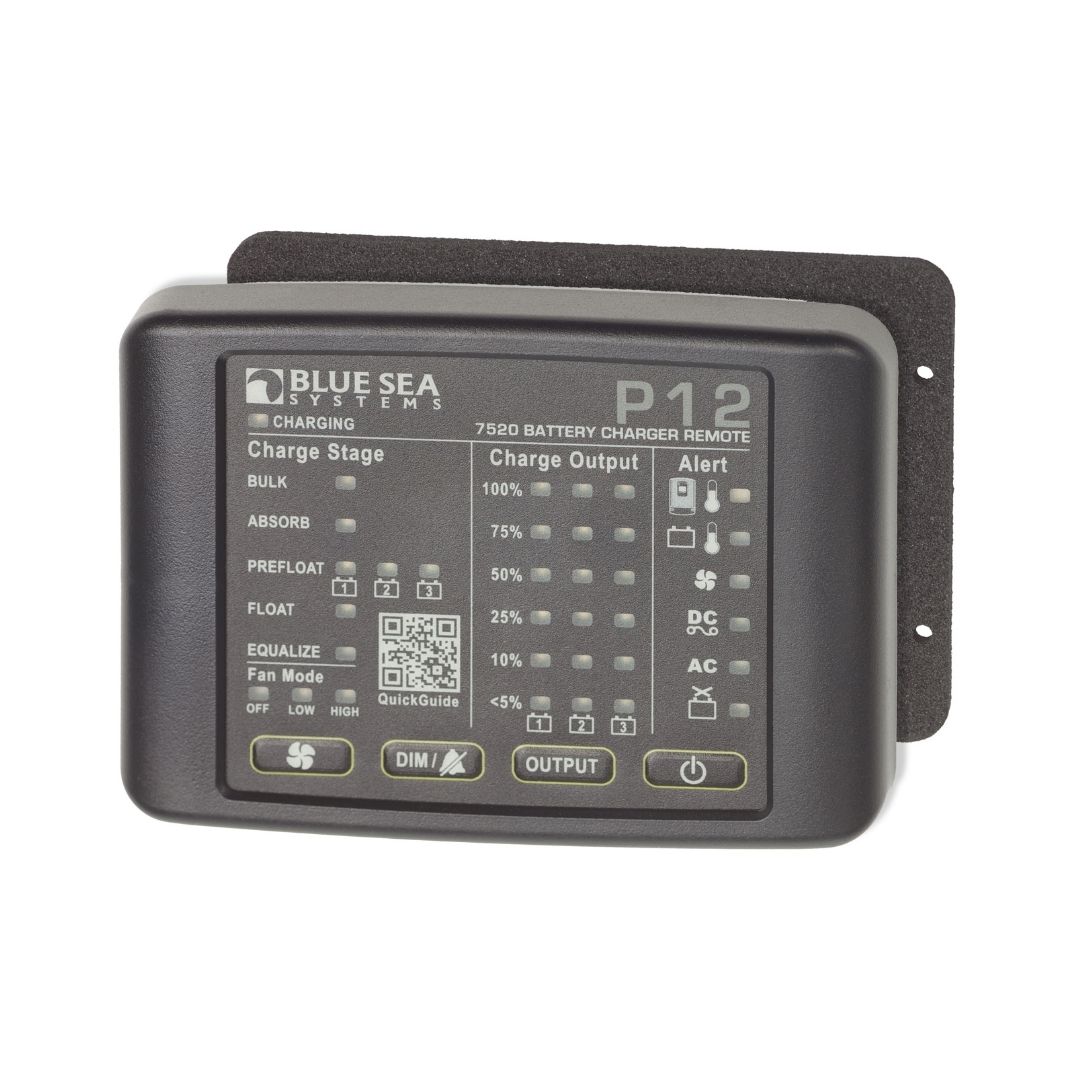

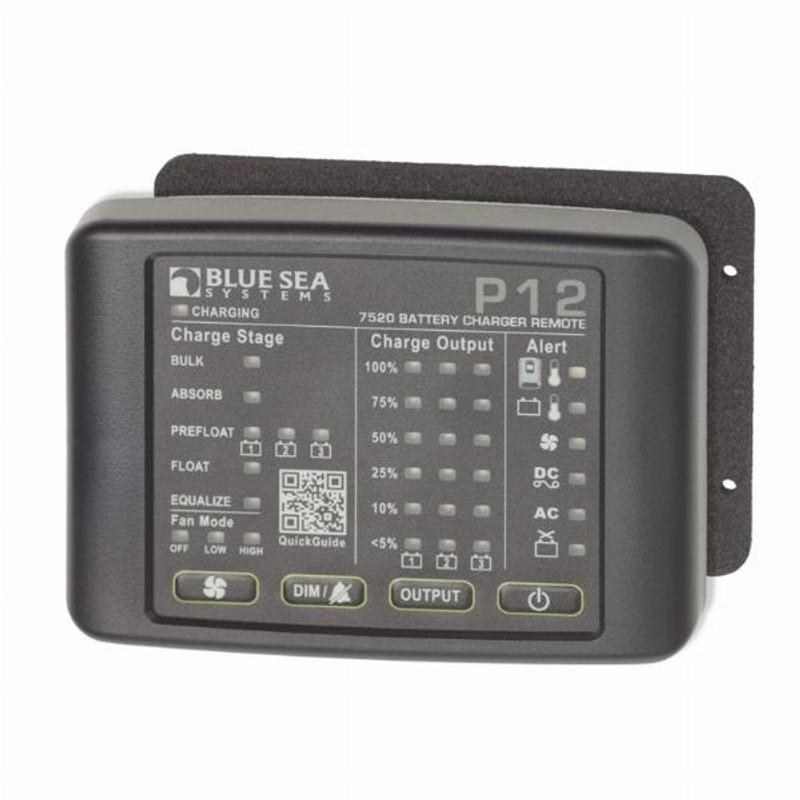

BLUE SEA P12 Battery Charger LED Remote / BS-7520
This is a remote that indicates battery charger stage and alerts as well as controlling basic battery charger functions.
LED INDICATORS
- Quick check for green light confirms charging.
- Displays charging stage including PreFloat for each battery.
- Indicates when the charger is in equalization mode.
- Indicates charger’s internal fan mode.
- Displays the percentage of output current for each battery. (Will also indicate maximum output setting when maximum output is adjusted to accommodate for AC source limitations.)
- Provides warning and alert status for quick diagnostics.
FOUR CONTROL BUTTONS
- FAN User adjustable settings (OFF, LOW, or HIGH)
- DIM/ALARM Provides adjustment to brightness of LEDs on display as well as Silence function for alarms.
- OUTPUT User adjustable charger output when AC source limitations exist that require lowering the AC current draw.
- STANDBY Places P12 Battery Charger into standby mode.
SPECIFICATIONS
- PART NUMBER: BS-7520
- REMOTE: LED REMOTE
- MINIMUM OPERATING TEMPERATURE: -20° C
- MAXIMUM OPERATING TEMPERATURE: 60° C
- MINIMUM STORAGE TEMPERATURE: -30° C
- MAXIMUM STORAGE TEMPERATURE: 70° C
- COMMUNICATIONS CABLE: Cat5e
- COMMUNICATIONS PROTOCOL: PROPRIETARY
- MAXIMUM CABLE LENGTH: 150ft (45.72 m)
- OPERATING CURRENT: <300mA sourced from charger

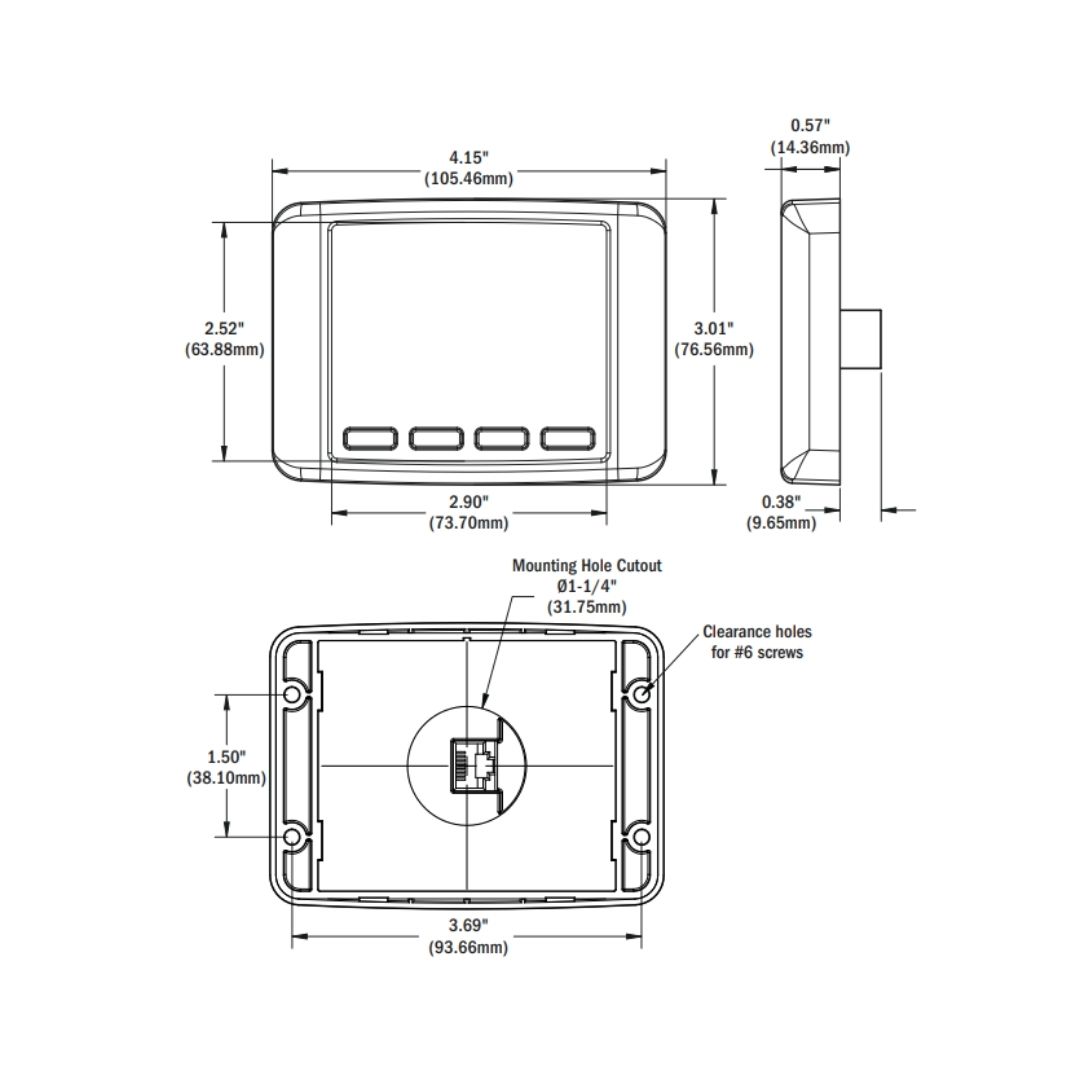

- HEIGHT: 3.01″ (76.45 mm)
- WIDTH: 4.15″ (105.41 mm)
- DEPTH: 0.95″ (24.13 mm)
- WEIGHT: 0.67 lb (0.3 kg)
