Blue Sea HD-Series Heavy Duty 3 Position Selector Battery Switch with AFD
BLUE SEA HD-Series Heavy Duty 3 Position Selector Battery Switch with AFD / BS-11003
BLUE SEA HD-Series Heavy Duty 3 Position Selector Battery Switch with AFD / BS-11003 1
BLUE SEA HD-Series Heavy Duty 3 Position Selector Battery Switch with AFD / BS-11003 2
BLUE SEA HD-Series Heavy Duty 3 Position Selector Battery Switch with AFD / BS-11003 3

BLUE SEA HD-Series Heavy Duty 3 Position Selector Battery Switch with AFD / BS-11003

$185.00 inc GST

SKU: BS-11003

BLUE SEA HD-Series Heavy Duty 3 Position Selector Battery Switch with AFD / BS-11003

In stock

ENQUIRY!
Add to wishlist
Compare
SKU: BS-11003 Category:

UPC:

Condition:  New

In stock

NOTE - Please call us to check availability & leadtimes prior to ordering as not all Blue Seas items are carried in stock.

Description

Description

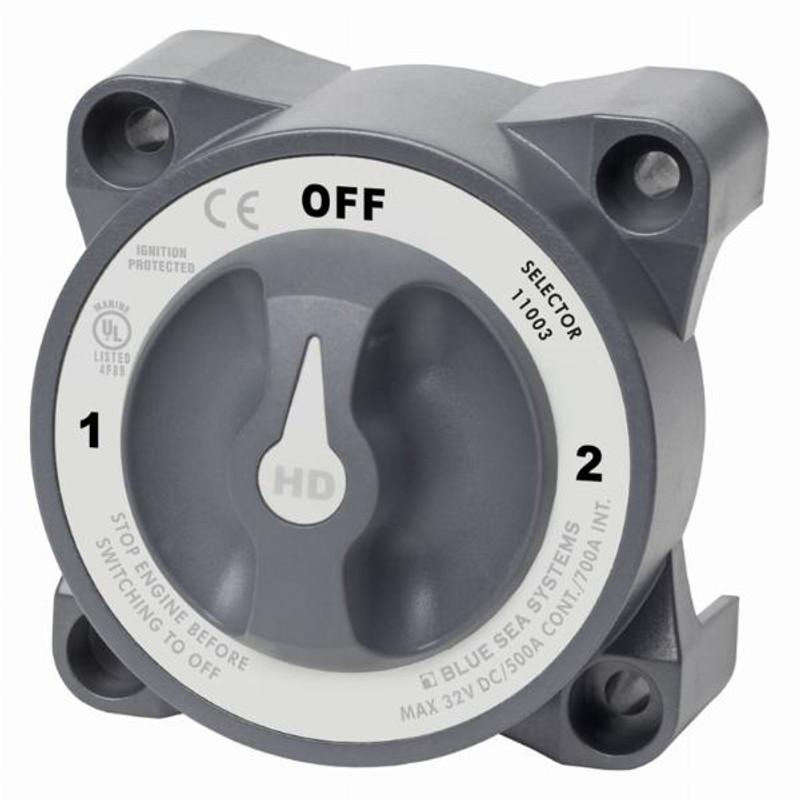

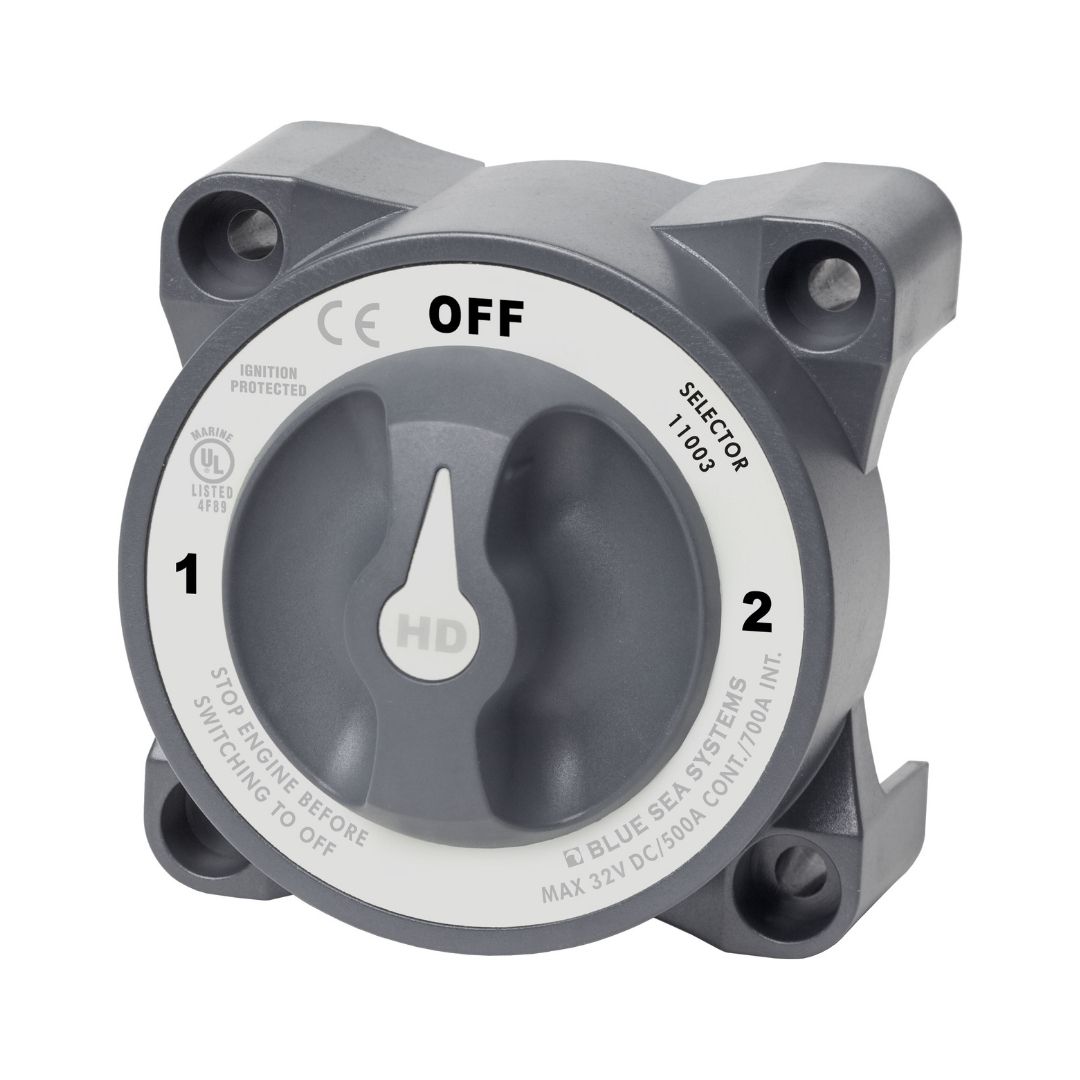

BLUE SEA HD-Series Heavy Duty 3 Position Selector Battery Switch with AFD / BS-11003

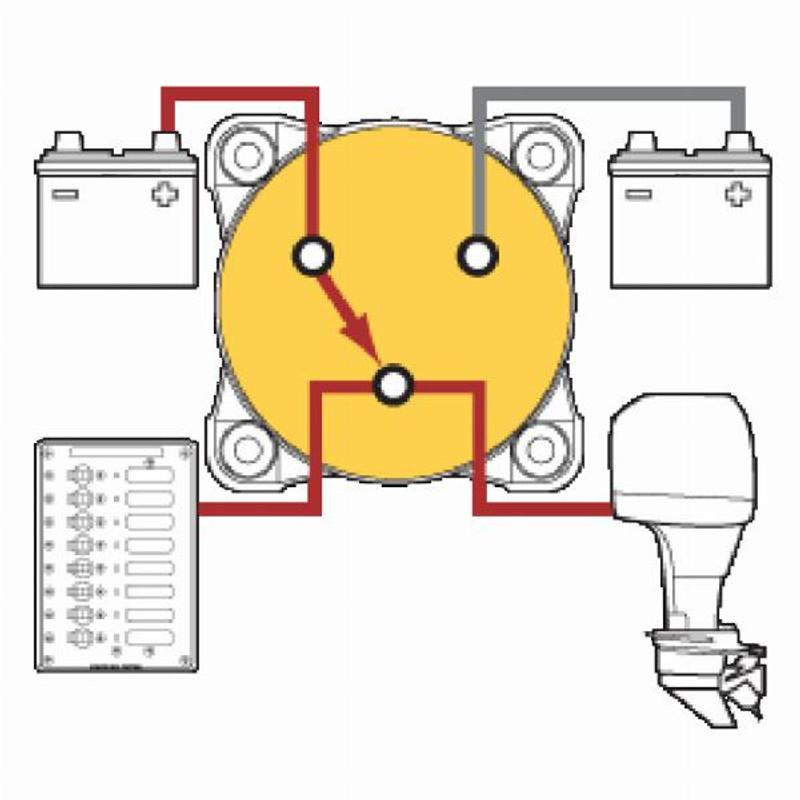

This is a switch with 3 position selector for battery banks.

HIGHLIGHTS

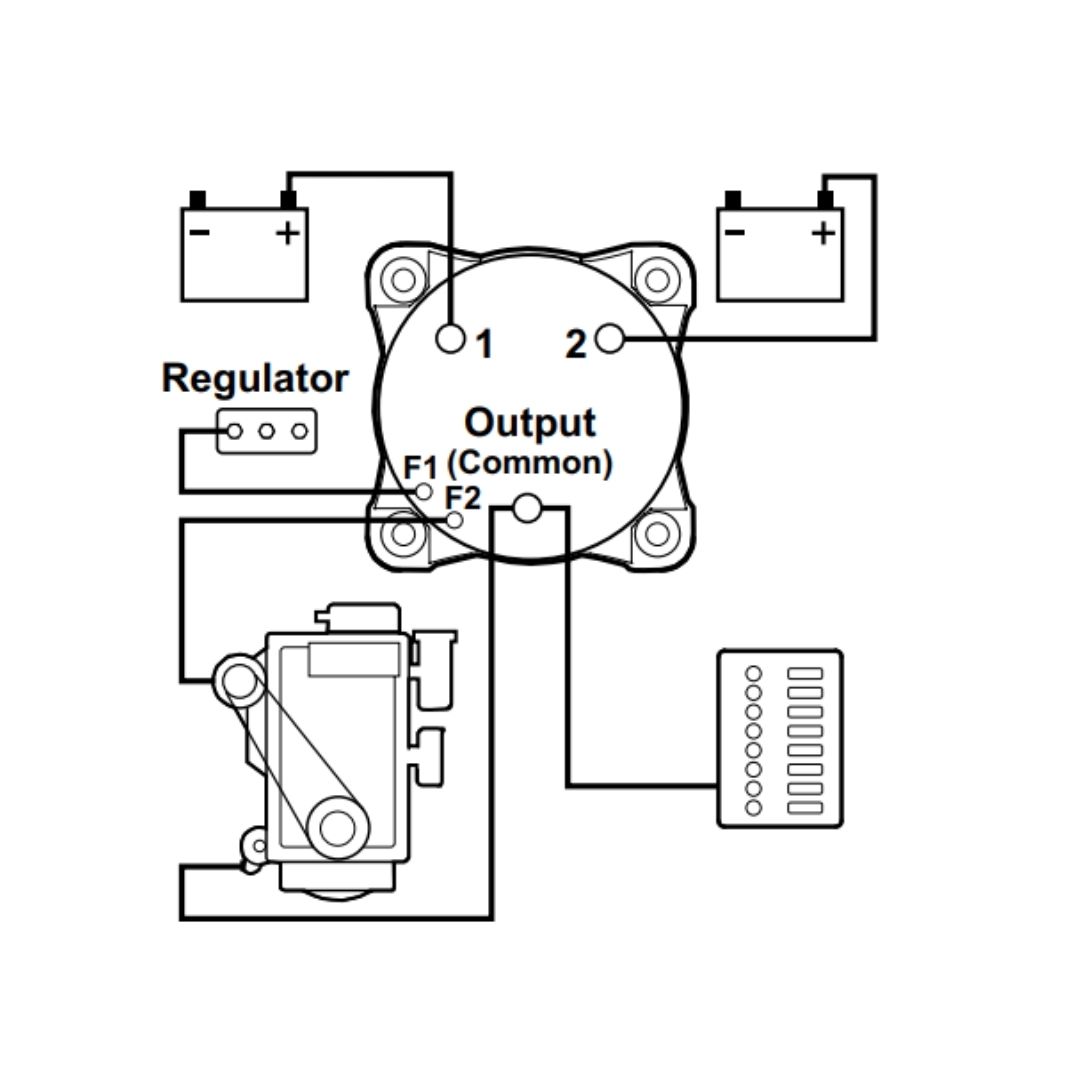

  • Includes AFD (Alternator Field Disconnect).
  • Ignition protected—safe for installation aboard gasoline powered boats.

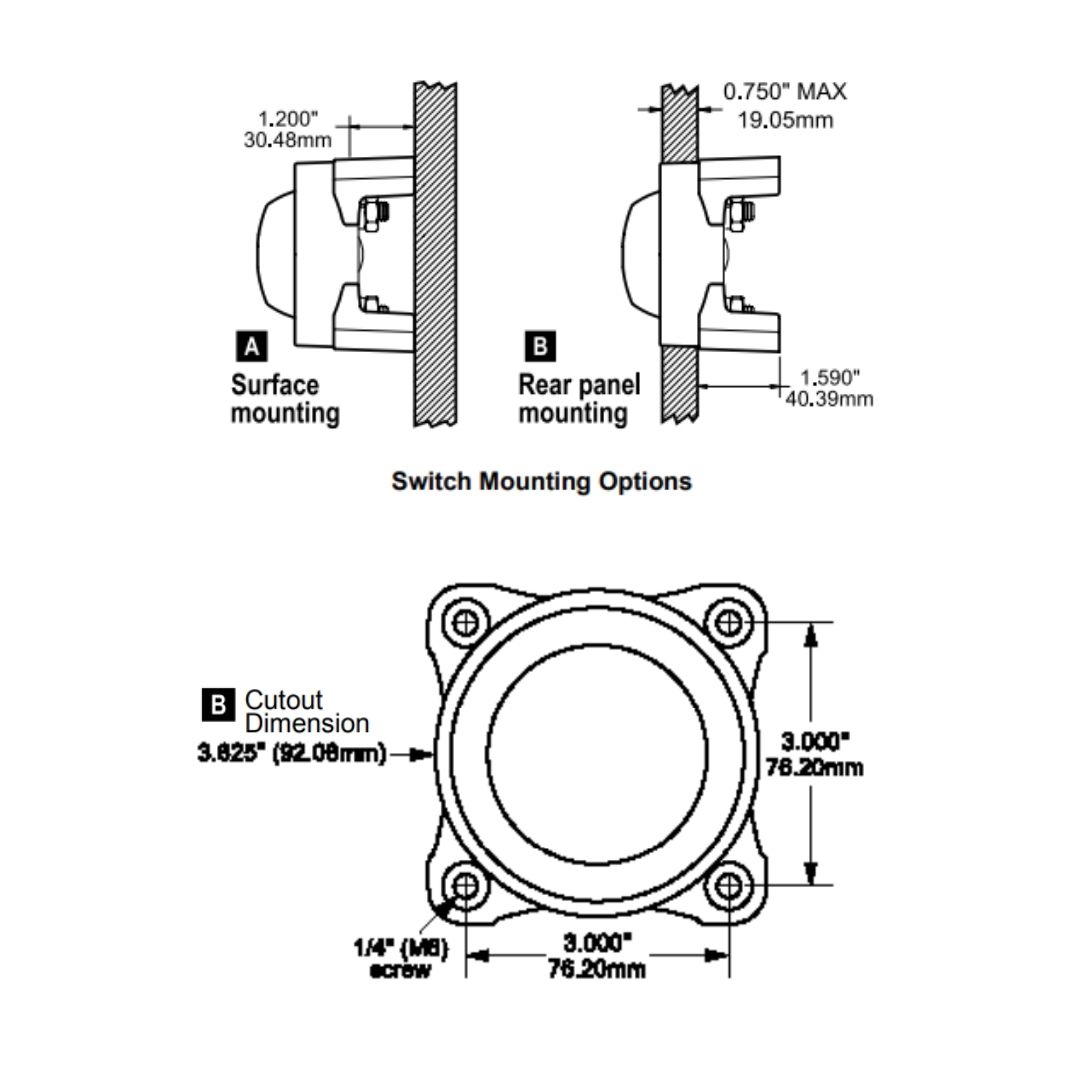

  • Case design allows surface or rear panel mounting.
  • Accepts two 4/0 AWG (95mm²) battery cables.

SPECIFICATIONS

  • PART NUMBER: BS-11003
  • SWITCH TYPE: SELECTOR 3 POSITION
  • COLOR: GREY
  • SWITCH POSITIONS: 3
  • BATTERY COMBINE: NO
  • ALTERNATOR FIELD DISCONNECT: YES
  • MAXIMUM VOLTAGE: 32V DC
  • TERMINAL STUD TORQUE: 220 in-lb (24.86 Nm)
  • CONTINUOUS RATING: 500A
  • INTERMITTENT RATING: 700A (5 min)
  • CRANKING RATING – 30 SEC: 1600A

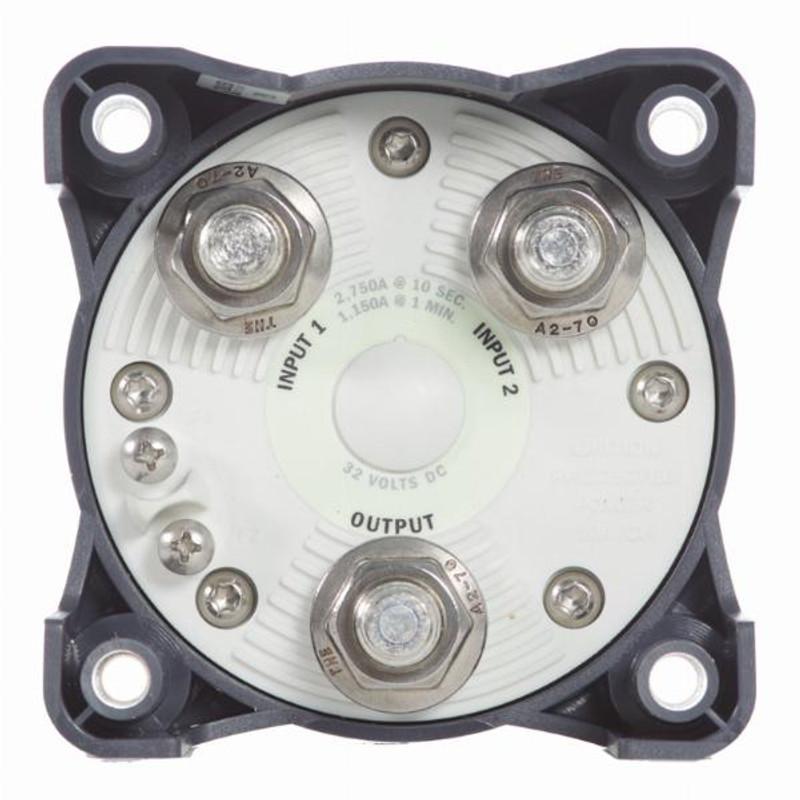

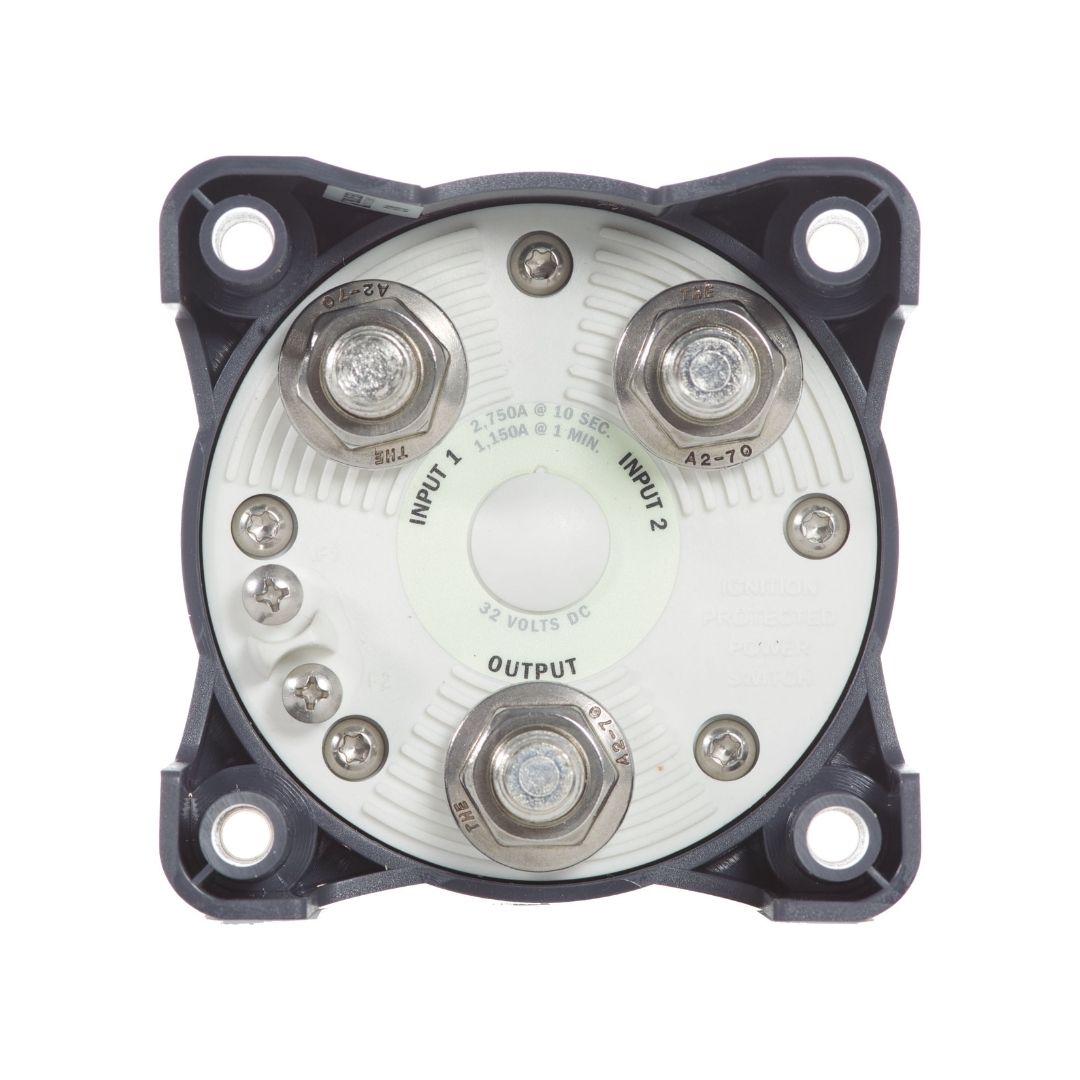

  • BATTERY INPUTS: 2
  • CABLE QUANTITY TO MEET RATINGS: TWO CABLES / TERMINAL
  • CABLE SIZE TO MEET RATINGS: 4/0 AWG (120mm²)
  • MOUNTING HOLES: Accept 1/4″ (M6) Screw
  • STUD MATERIAL: TINNED COPPER
  • TERMINAL STUD SIZE: 1/2″ (M12)
  • WEIGHT: 1.25 lb (0.57 kg) / 1.30 lb (0.59 kg)
