Description

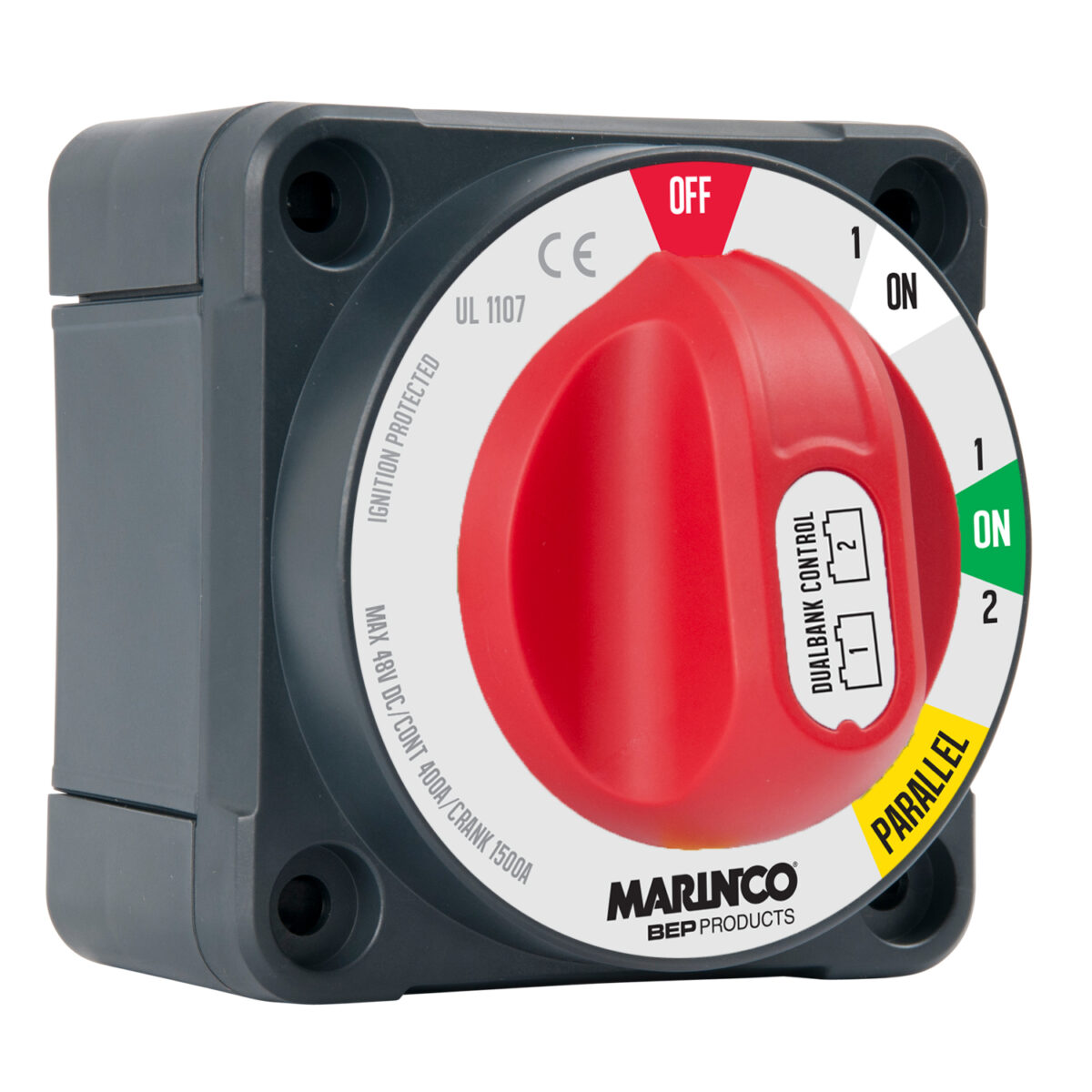

BEP Pro Installer Dual Bank Control Switch – 772-DBC
This innovative switch combines the functions of 3 battery switches into one (House, Start, and Emergency Parallel) to intuitively manage 2 battery banks and 2 loads.

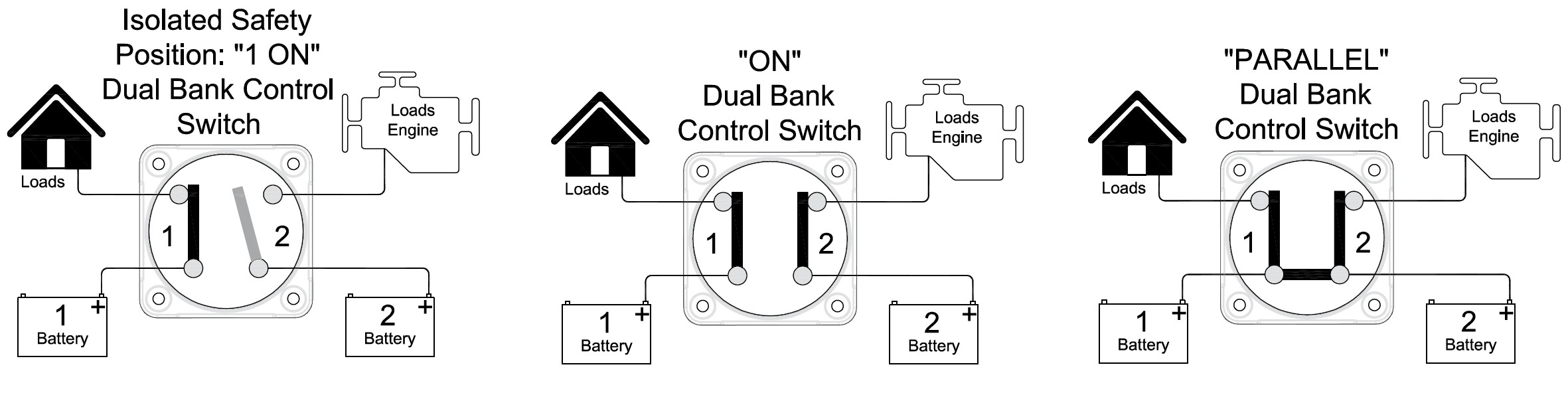

A unique safety position isolates one load e.g. House “On”, Start “Off” in case of engine malfunction, so an emergency radio call can still be made.
Significant savings in both space and installation cost can be made, without compromising functionality or safety.
Also available in EZ Mount version for quick wiring from the front.
Another addition to our multi award winning Pro Installer range, the innovative Dual Bank Control switch is like 3 switches in one, House, Start, and Emergency Parallel.
Offering easy intuitive control for the boater, the Dual Bank Control switch features a unique isolated-On position which allows use of house loads and VHF radio if the engine needs to be electrically isolated, or allows the engine to be isolated during servicing while still providing power to house loads [for lighting, stereo, fridge etc].
For boats or vehicles with single Engine and House battery bank, Dual Bank Control allows the use of optimized battery banks for their respective loads; an appropriately sized deep cycle bank for House loads, and thin plate starting batteries for the Engine.
Further, sensitive electronics are isolated from starter motor induced voltage spikes because House and Engine loads are separated during normal operation, unlike Selector battery switches.
| SKU | Model | L x W x H mm | Rating Cont | Rating Inter | Rating Crank | Voltage V DC | Operation | Stud Detail |
|---|---|---|---|---|---|---|---|---|
| 114088 | 772-DBC | 98 x 98 x 92 | 2x 400 | 2x 600 | 2x 1500 | 48 | 1, 1+2, Parallel, Off | 4x (3/8″ / 10mm) |
| 114089 | 772-DBC EZ | 98 x 98 x 92 | 2x 400 | 2x 600 | 2x 1500 | 48 | 1, 1+2, Parallel, Off | 4x (3/8″ / 10mm) |
