Description

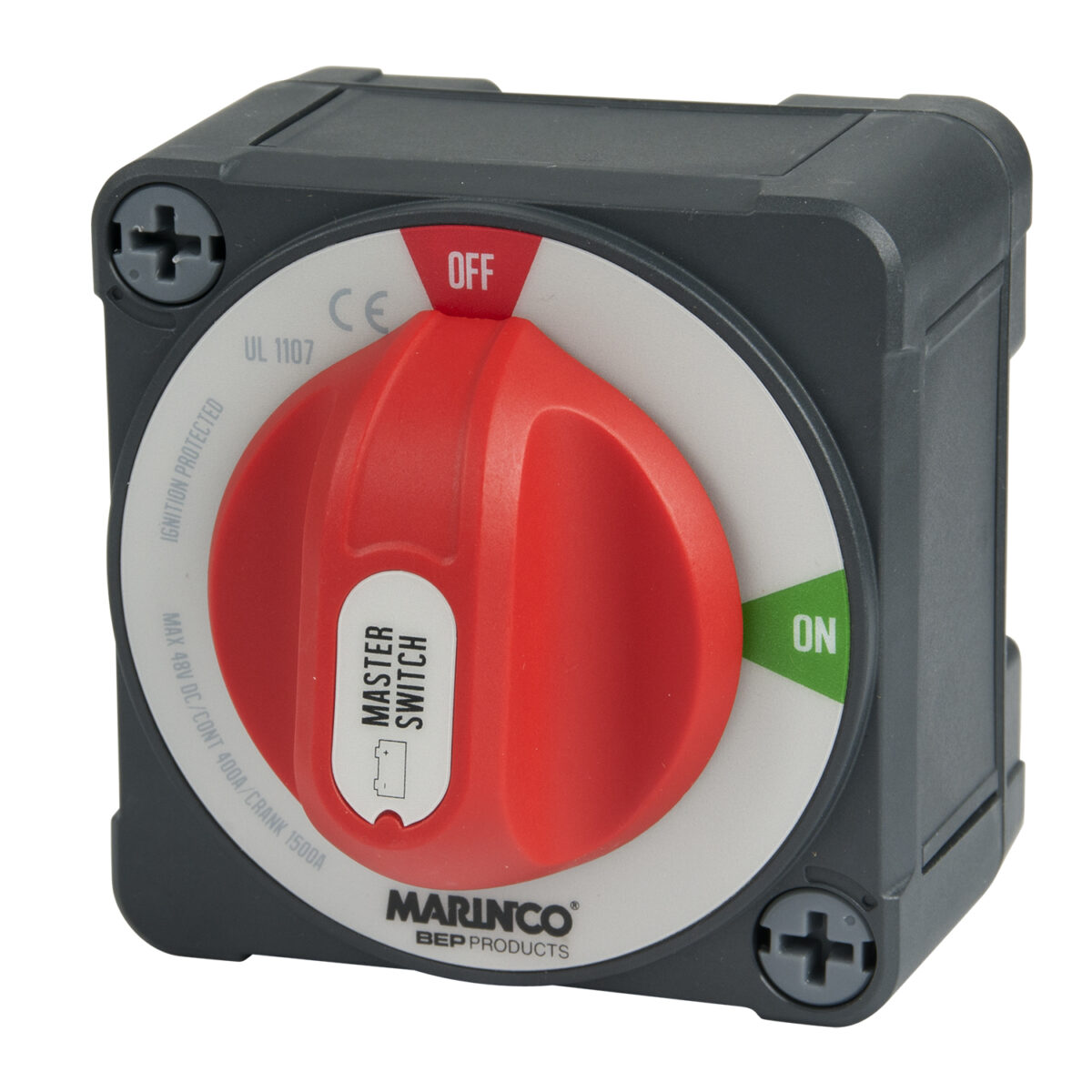

BEP Pro Installer Easy Mount Double Pole Battery Switch – 770-DPEZ
Same industry standard mounting with on/off operation.
Used where positive and negative supplies must be isolated at the same time.

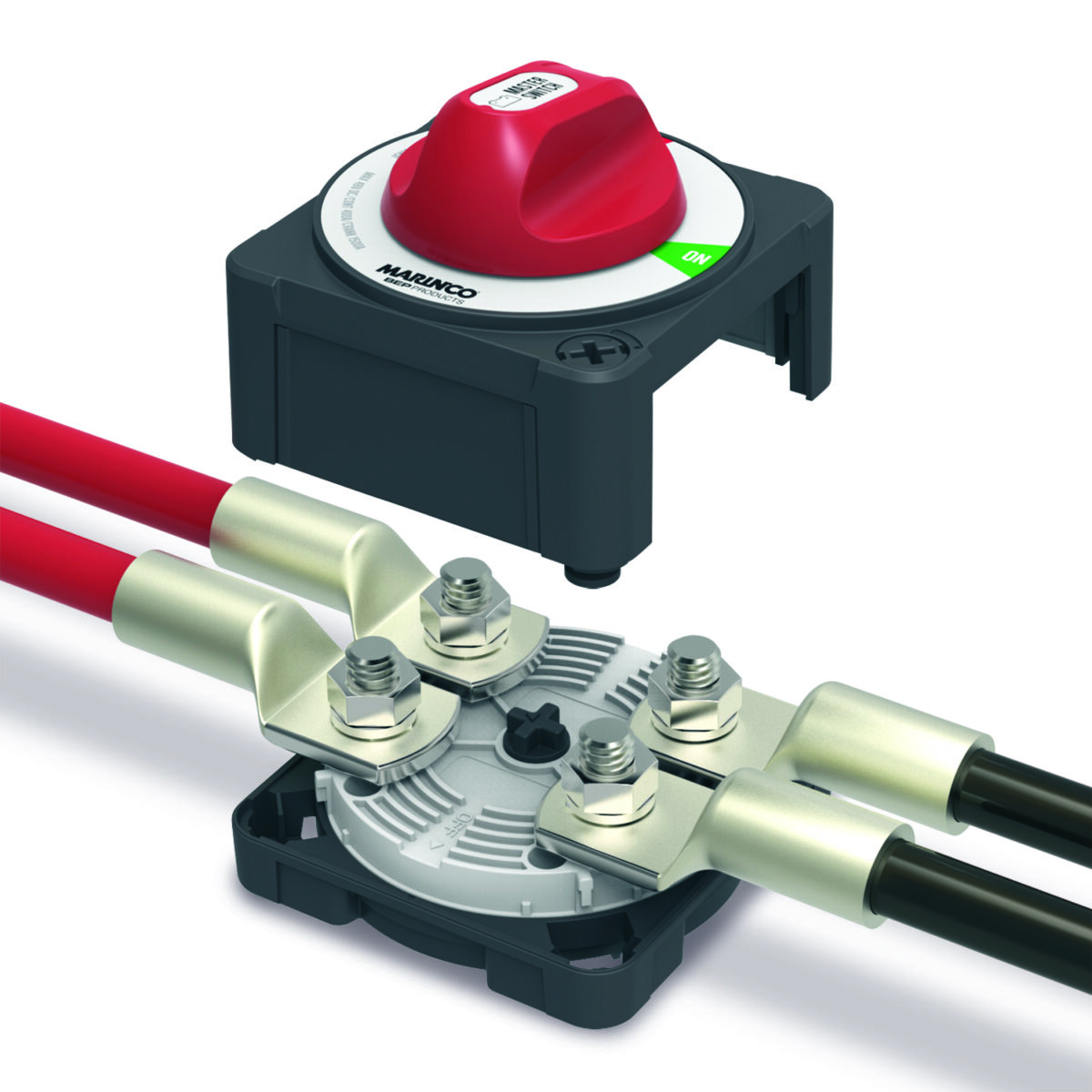

As easy to mount as 1, 2, 3, these revolutionary battery switches allow you to wire from the front.
Never has installation been so easy and cabling so accessible.
With their shared interconnection height, EZ-Mount battery switches “cluster” directly with the Pro Installer Busbar Range, resulting in the fastest, most compact installations.
All ratings and footprint of the EZ Mount Switch match those of the corresponding Pro Installer 770 series standard mount switch, offering the same high quality functionality, but with optimized, easy surface mounting.
SAFETY NOTE: For safety reasons Marinco® BEP does not recommend this for switching house and start battery systems at the same time.
You may need to isolate your engine battery in an emergency, but not your house battery which typically powers the communications. For this application please use the new Dual Bank Control Switch (114088) or one of Marinco® BEP’s battery switch clusters.
| SKU | Model | L x W x H (mm) | Rating Cont (V DC) | Rating Inter (V DC) | Rating Crank (V DC) | Operation | Stud Detail | Voltage (V DC) |
|---|---|---|---|---|---|---|---|---|
| 114084 | 770-DP | 98 x 98 x 92 | 2x 400 | 2x 600 | 2x 1500 | On/off (x2) | 4x (3/8″ / 10mm) | 48 |
| 114085 | 770-DP EZ | 98 x 98 x 92 | 2x 400 | 2x 600 | 2x 1500 | On/off (x2) | 4x (3/8″ / 10mm) | 48 |
LxWxH (mm): 98x98x92 Rating (A DC): 2 x 400 Cont / 2 x 600 Inter / 2 x 1500 Crank Voltage (V DC): 48 Operation: On/Off (x2) Stud Detail: 4x (3/8" / 10mm)
