Description

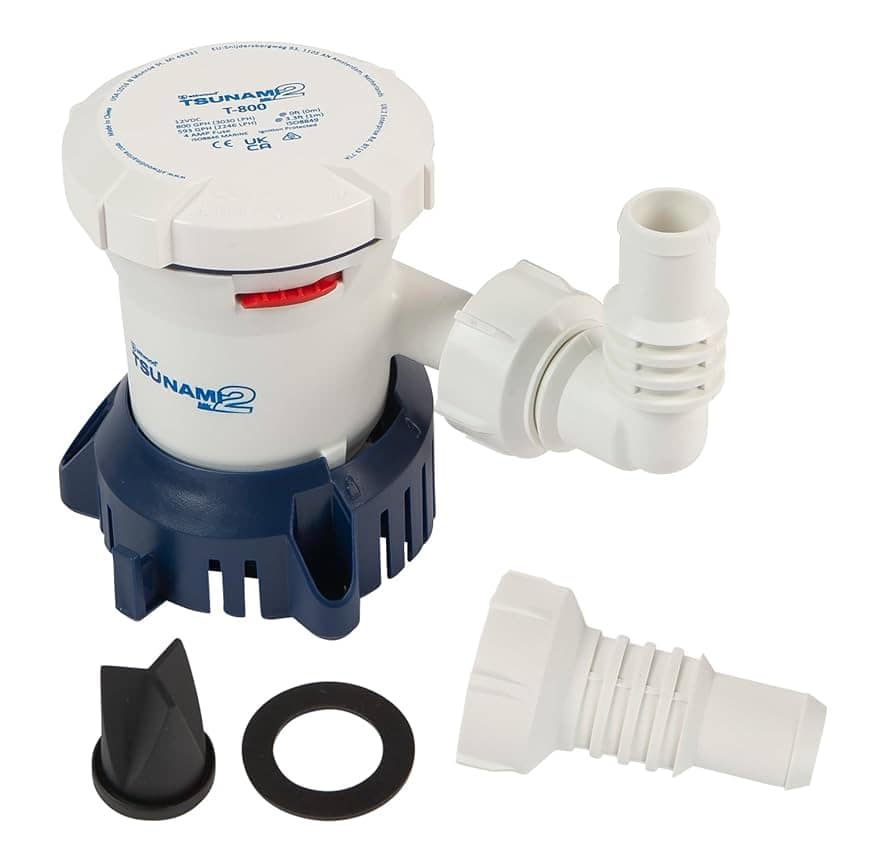

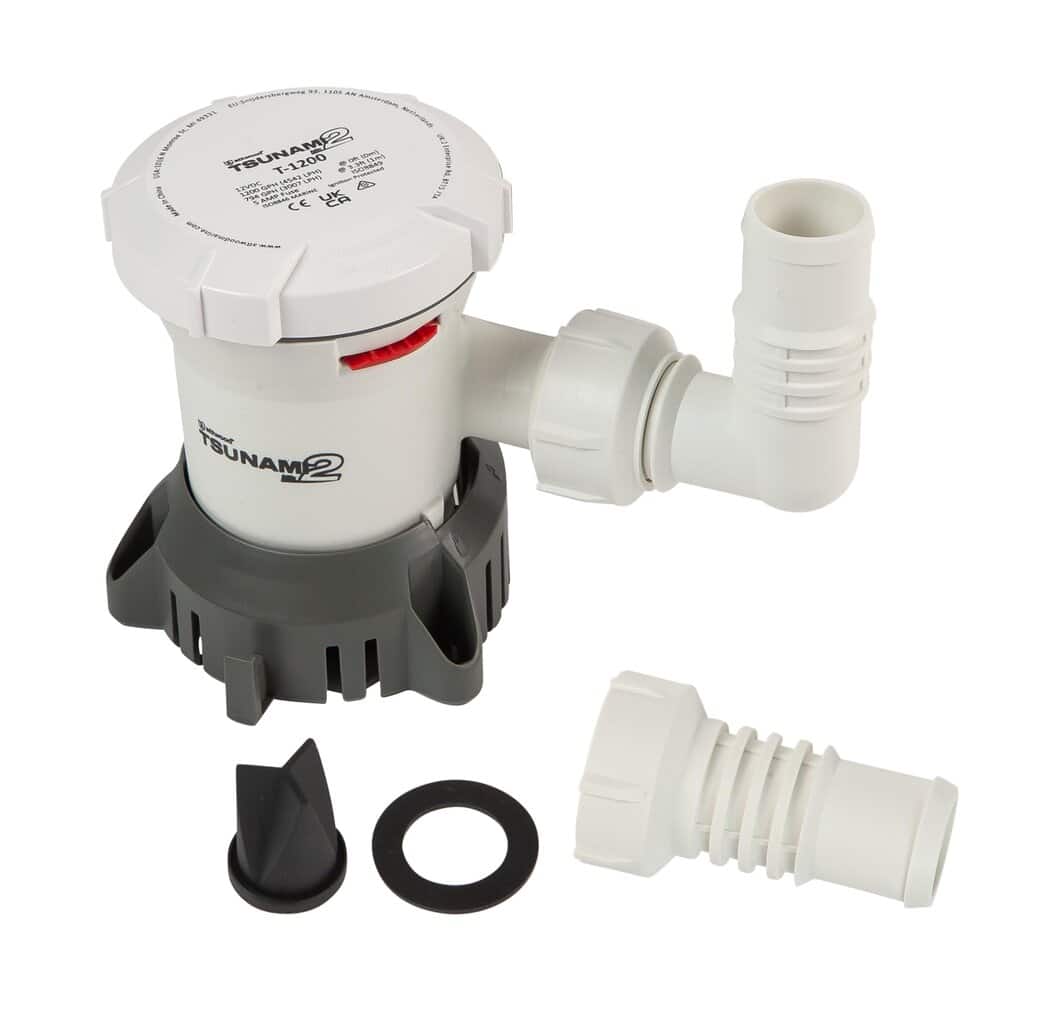

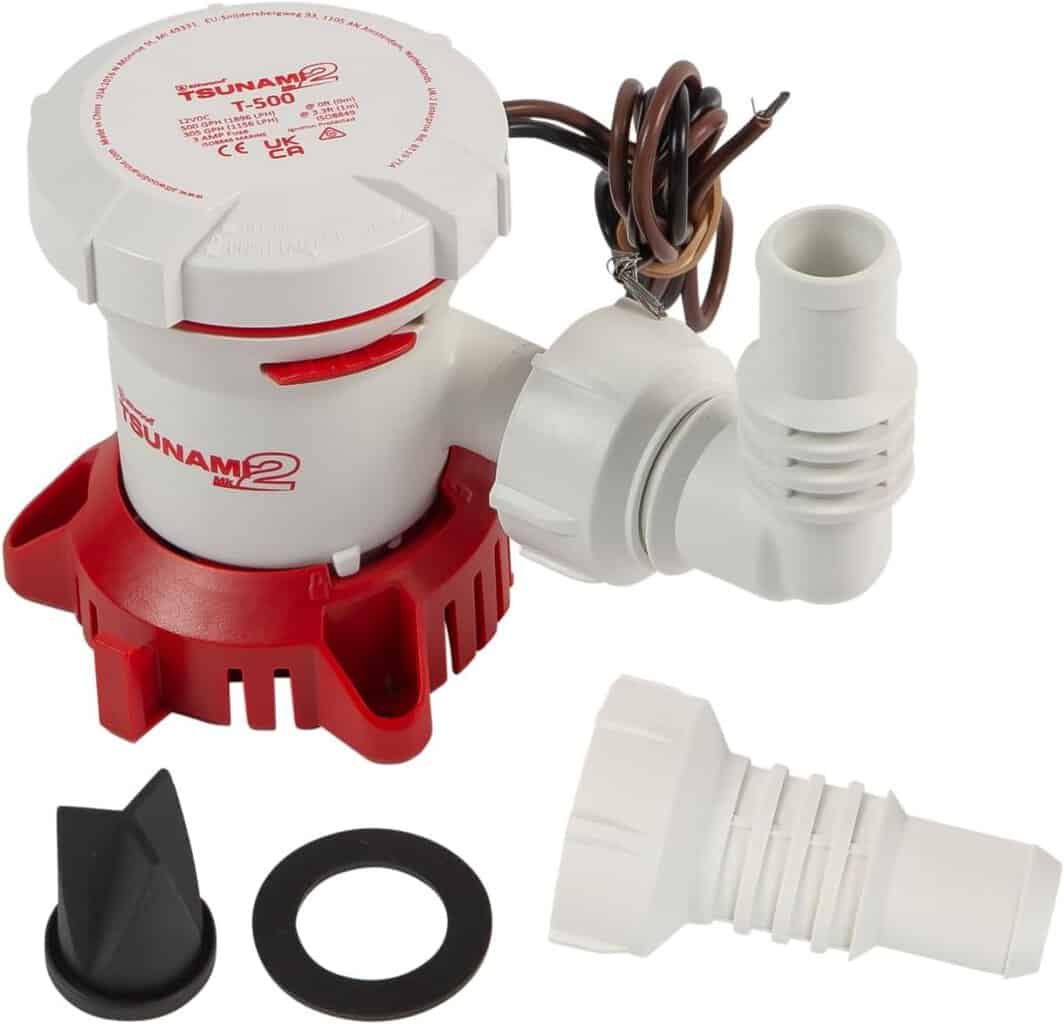

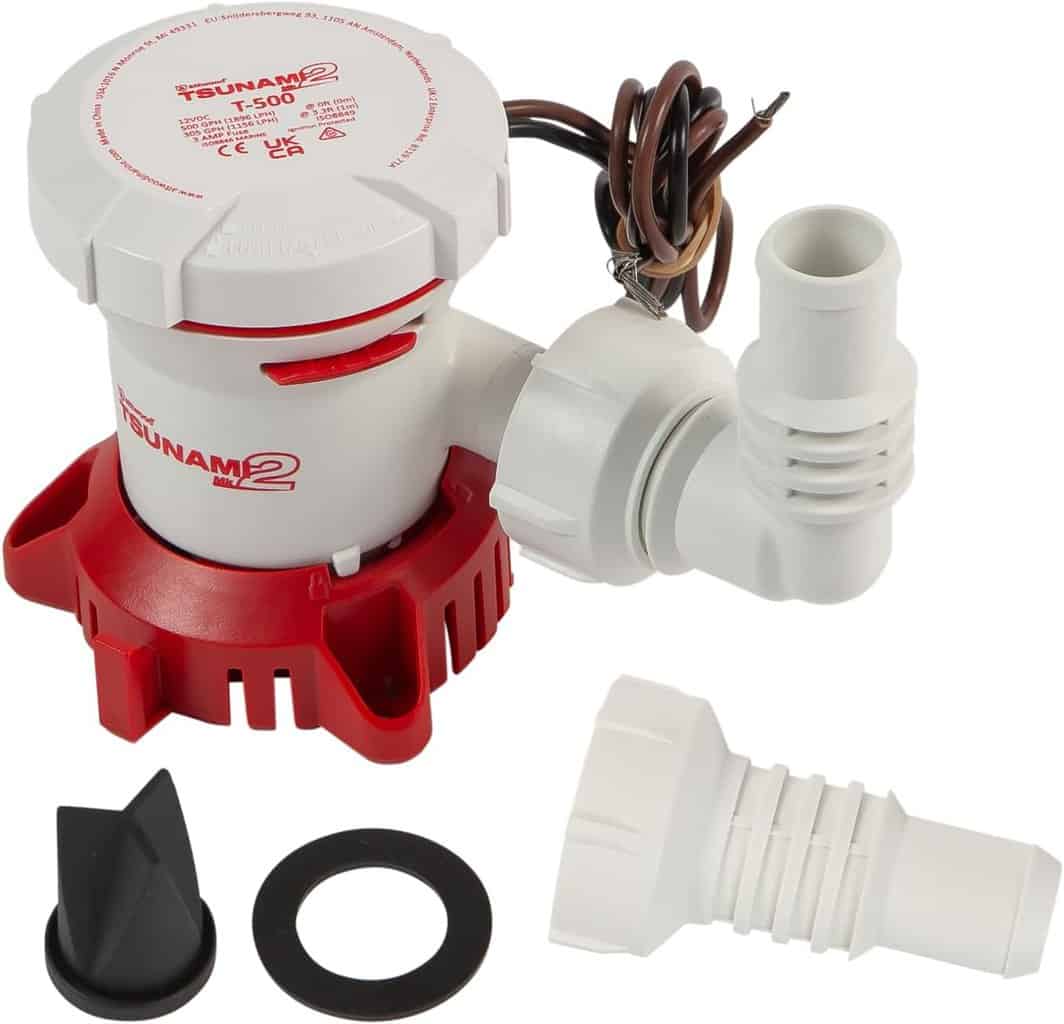

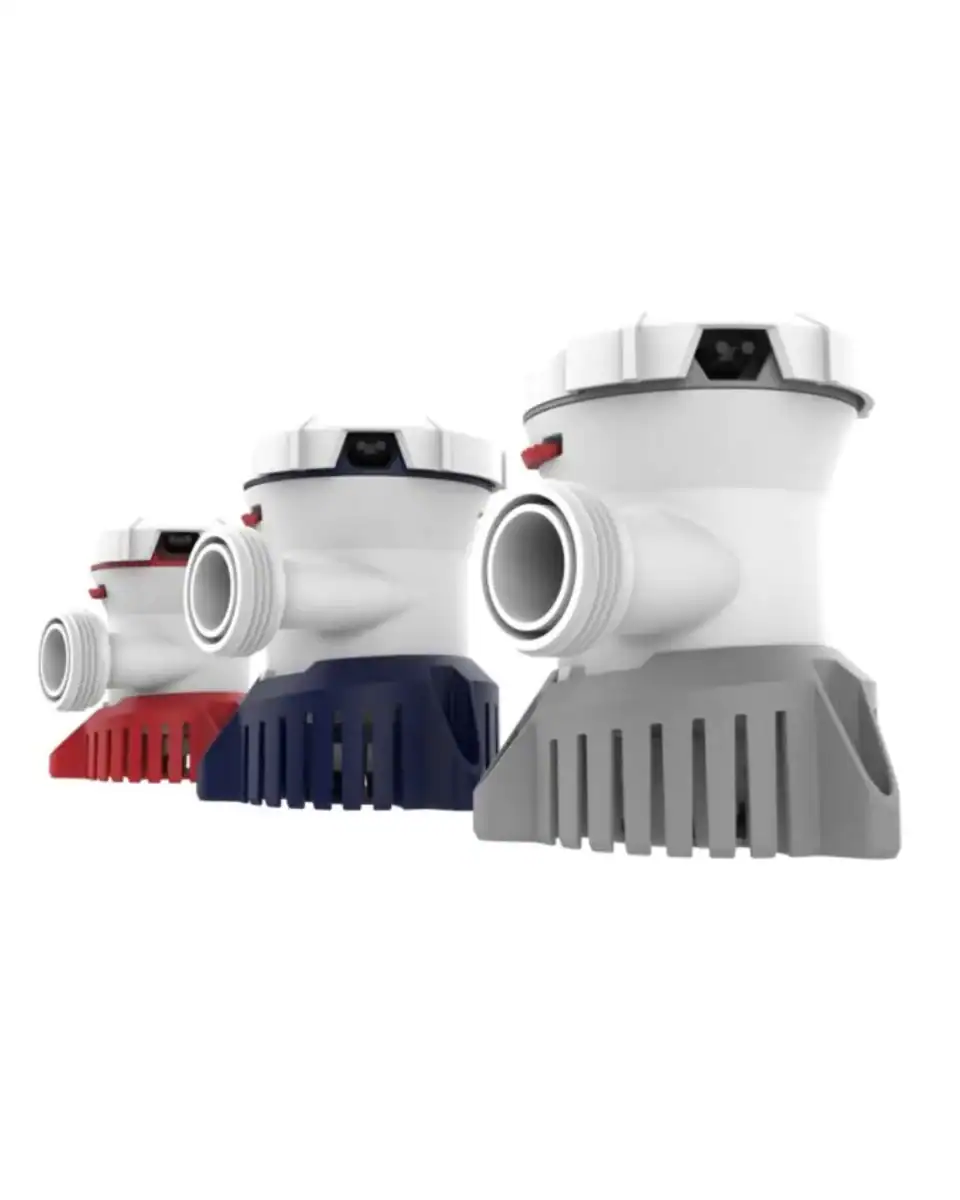

Attwood Tsunami Bilge Pumps MK2 12 & 24 Volt volt 500GPH 800GPH 1200GPH
Available in three pump capacities Tsunami Mk2 is the only manual bilge pump that eliminates air-locks. Tsunami Mk2 is the easiest manual bilge pump to install and service. External mounting feet and integrated outlet eliminates the need to remove the basket, and the service pump cartridge can be easily accessed singlehandedly. Plus, its universal mounting pattern makes replacement simple. Features:
- Backwards compatible hole pattern and motor cartridges of Tsunami Mk1 bilge and aerator pumps
- Patented X-Air Impeller
- Prevents air locking so that the pump will not run dry and burn out
- 90 degree rotatable elbow outlet
- Can be installed anywhere in a full 360 degree orientation
- Exterior mounting feet eliminate the need to remove the basket and integrated outlet reduces time and effort
- Industry leading motor and shaft seals
- Enhanced protection against harmful corrosion
- No pipe or hose removal required
- Service pump cartridge from hard-to-reach areas using only one hand
- Tricuspid check valve
- Helps prevent water from backflowing through the pump
- Â 3 Year warranty
| SKU | Model | Capacity (L/m) | Open Flow (gph) | Power V | Max. Amp Draw (amp) | Fuse (amp) | Height (mm) | Dia. (mm) | Hose Outlet Dia. (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 131560 | T500 | 31.5 | 500 | 12 | 1.8 | 3 | 97 | 91 | 19 |
| 131562 | T800 | 50.5 | 800 | 12 | 3.2 | 5 | 114 | 101 | 19 |
| 131563 | T800 | 50.5 | 800 | 24 | 1.6 | 2 | 114 | 101 | 19 |
| 131564 | T1200 | 76.0 | 1200 | 12 | 4.0 | 6 | 115 | 101 | 28 |
| 131565 | T1200 | 76.0 | 1200 | 24 | 2.0 | 3 | 115 | 101 | 28 |
Accessories: 131707 Tsunami mount bracket 131719 Tsunami hose tail 90Ëš N.B. Output specifications are in US gallons per hour. While Attwood submersible bilge pumps have caulked wire, best practice installation is to ensure that wiring connections remain above water level. Certifications, Standards and Listings
The Tsunami Mk2 pumps meet or exceed the following U.S. and international standards
• IP Rating: IP68
• Ignition Protection Standards: ISO 8846 Marine
• Marine Electrical Wiring Standards: ABYC E-11, ISO 10133
Materials
• PC/PBT Lid, Cartridge Body, and Pump Body, ABS Basket, PP (GF) Fittings,POM Fittings, PBT (GF) Impeller, SS316 Motor Shaft, Nitrile Seals
