Description
Adjustable Baystar Outboard Hose Kit – Complete Kit
Complete BayStar™ steering kit (291561) providing the flexibility to enable the installer the ability to make whatever hydraulic hose length required, without the need for specialist swaged fittings. The two unique re-usable brass end fittings allow the installer to simply cut the hose to length and insert the brass connectors. Complete kit includes 50 foot length of outboard hose, BayStar™ helm, BayStar™ front mount cylinder, hydraulic oil, rubber boot and two re-usable hose fittings.
INTRODUCTION
BayStar™˙hydraulic steering is brought to you by the manufacturers of SeaStar®, the most trusted name in pleasure boat steering. BayStar allows you to install all of the safety, reliability and comfort of hydraulic steering onto your boats rated up to MAX. 150HP as rated by the engine manufacturer. Combine this with the superior SeaStar Solutions design team, rigid ISO quality control and teamed with the finest materials and precision manufacturing—BayStar continues the tradition bringing comfort and safety to boating.
The BayStar steering system consists of a super low friction helm for smooth comfortable steering, a balanced cylinder–featuring a compact design that fits most splashwells. This kit includes
| Quantity | Item Description | Reference Code |
|---|---|---|
| 1 | Cylinder front mount HC4645 | 291071 |
| 1 | Helm – Dometic BayStar 1.4 HH4314 | 291490 |
| 2 | Dometic Seastar oil (946ml) | 291902 |
| 1 | 50 feet outboard hose | 293050 |
| 2 | Re-usable hose fitting | 297332 |
| 1 | Rubber boot | 293001 |
BayStar is NOT recommended in applications with high steering effort (i.e. such as those using high performance engines or boats capable of attaining high speeds), customers should consider upgrading the system to SeaStar/SeaStar Pro steering . This will reduce the steering effort due to the fact that SeaStar steering provides more output power resulting in lower steering effort.
Please note there are other cylinders that we can look at changing into this kit – please call us to discuss 07 3039 3100. Please compatiability list below.
Features
• Patented No FeedBack™ Steering lock valves.
• 5 turns lock-to-lock.
• Up to 150 horsepower (total).
• Available either as separate components or as a complete system ready to install.
• Fixed cylinder.
• BayStar hydraulic tubing cut to suit application.
• Tilt option available.
• Requires 3” (76mm) cut-out hole in dash.
• Requires 21” (534mm) splashwell width.
CAUTION
DO NOT use BayStar on smaller HP outboard engines that use wing nut type transom mount clamping screws.
Notice
Tilt Helm HH4315 is available separately. Currently not available in kit form.

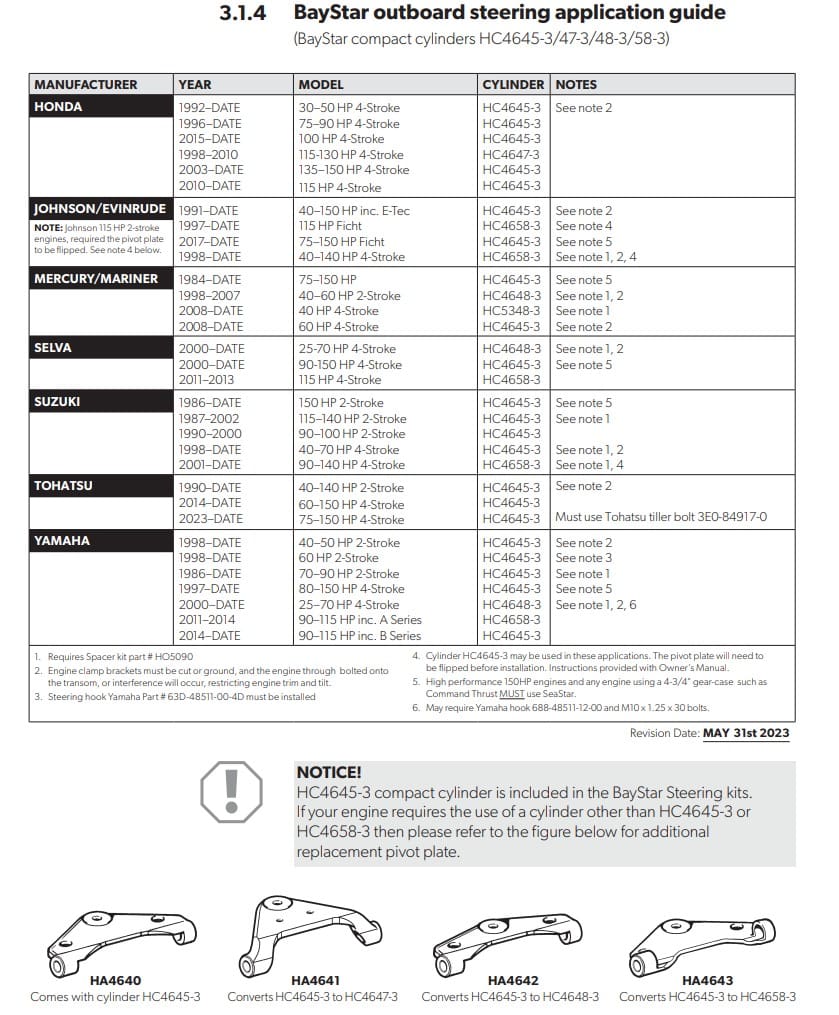

APPLICATION GUIDE
(Cylinders HC4645H/47H/48H/58H)
APPLICATION GUIDE – Baystar Steering Cylinder
(Cylinders HC4645H/47H/48H/58H)
| SKU | Make | Year range | Capacity | Notes | Cylinder MPN |
|---|---|---|---|---|---|
| 291071 | Force | 1985 to date | 90–150HP | — | HC4645-3 |
| 291071 | Honda | 1992 to date | 30–90HP | — | HC4645-3 |
| 291073 | Honda | 1998 – 2010 | 115–130HP | — | HC4647-3 |
| 291071 | Honda | 2003 to date | BF135HP | — | HC4645-3 |
| 291071 | Honda | 2010 to date | 115–150HP | — | HC4645-3 |
| 291071 | Honda | 2015 to date | 100HP | — | HC4645-3 |
| 291074 | Johnson / Evinrude | 1977 – 1990 | 65–150HP | — | HC4648-3 |
| 291071 | Johnson / Evinrude | 1991 to date | 40–150HP | — | HC4645-3 |
| 291075 | Johnson / Evinrude | 1997 to date | 115HP Ficht | 4, 5 | HC4658-3 |
| 291075 | Johnson / Evinrude | 1998 to date | 40–140HP 4-Stroke | — | HC4658-3 |
| 291075 | Johnson / Evinrude | 1997 to date | 115HP Ficht | — | HC4658-3 |
| 291071 | Johnson / Evinrude | 2017 to date | 75–150HP Ficht | 5 | HC4645-3 |
| 291071 | Mercury / Mariner | 1984 to date | 75–150HP | — | HC4645-3 |
| 291072 | Mercury / Mariner | 1998 – 2007 | 46-60HP 2-Stroke | — | HC4670-3 |
| 291071 | Mercury / Mariner | 2008 to date | 40HP 4-Stroke | — | HC4645-3 |
| 291071 | Mercury / Mariner | 2008 to date | 60HP 4-Stroke | — | HC4645-3 |
| 291071 | Nissan | 1990 to date | 120–140HP | — | HC4645-3 |
| 291071 | Suzuki | 1986 to date | 150HP | — | HC4645-3 |
| 291071 | Suzuki | 1996 only | 115–140HP | — | HC4645-3 |
| 291071 | Suzuki | 1987 – 2002* | 115–140HP | 1 | HC4645-3 |
| 291071 | Suzuki | 1990 – 2000 | 90–100HP | — | HC4645-3 |
| 291071 | Suzuki | 1998 to date | 40–70 4-Stroke | 1 | HC4645-3 |
| 291075 | Suzuki | 2001 to date | 115–140HP 4-Stroke | 1, 4 | HC4658-3 |
| 291071 | Tohatsu | 1990 to date | 40–140HP | — | HC4645-3 |
| 291071 | Tohatsu | 2014 to date | 60–150HP | — | HC4645-3 |
| 291071 | Yamaha | 1998 to date | 40–50HP | 2 | HC4645-3 |
| 291071 | Yamaha | 1998 to date | 60HP | 3 | HC4645-3 |
| 291071 | Yamaha | 1986 to date | 70–90HP | 1 | HC4645-3 |
| 291071 | Yamaha | 1997 to date | 80–150HP 4-Stroke | — | HC4645-3 |
| 291074 | Yamaha | 2000 to date | 25–60HP 4-Stroke | 1 | HC4648-3 |
| 291074 | Yamaha | 2010 to date | 70HP 4-Stroke | — | HC4648-3 |
| 291075 | Yamaha | 2011 – 2014 | 90–115HP (A Series) | — | HC4658-3 |
| 291075 | Yamaha | 1997 – 2013 | 115A 4-Stroke | — | HC4658-3 |
| 291071 | Yanmar | 2014 to date | 115B 4-Stroke (B Series) | — | HC4645-3 |
| 291071 | Yanmar | 1990 to date | 27–36HP | — | HC4645-3 |
Notes:
- Requires spacer kit 293690 (HO5090).
- Engine clamp brackets must be cut or ground, and the engine through bolted onto the transom, or interference will occur, restricting engine trim and tilt.
- Steering hook Yamaha Part #63D-48511-00-4D required.
- Cylinder 291071 may be used in these applications. The pivot plate will need to be flipped before installation.
- Johnson 115HP 2-stroke engines require the pivot plate to be flipped. See Note 4.
*Not suitable for 115-140HP. Suzuki motors manufactured in 1996 only. N.B. Dometic BayStar Plus is not recommended for Mercury 150HP Optimax DFI.
BAYSTAR CYLINDERS
Part# HC4645H, HC4647H, HC4648H and HC4658H
Balanced cylinder, featuring a compact design that fits most splashwells.
Part# HC4600
(No Longer Available. Replacement parts still available)
Balanced cylinder that fits most splashwells.
Additional Parts Available separately:
BAYSTAR HELM
Part# HH4314
Super low friction helm for smooth comfortable steering.
BAYSTAR STEERING KITS
Complete BayStar™ steering kit (291561) providing the flexibility to enable the installer the ability to make whatever hydraulic hose length required, without the need for specialist swaged fittings. The two unique re-usable brass end fittings allow the installer to simply cut the hose to length and insert the brass connectors. Complete kit includes 50 foot length of outboard hose, BayStar™ helm, BayStar™ front mount cylinder, hydraulic oil, rubber boot and two re-usable hose fittings.
| Code | Description | |
|---|---|---|
| 291071 | 1 x Cylinder Capacities – SeaStar Solutions Part No. HC4645H
Cylinder Model: Front Mount Bore: 1.25″ / 31.7mm Shaft Dia.: .625″ / 15.9mm Stroke: 8″ / 203mm Volume: 118.6cc / 7.2in3 Torque: N/A |
|
| 291490 | 1 x Front Helm Pump – 1.4 HH4314
Front MountDisplacement: 22.9cc / 1.4cu in Relief Valve Setting: 70bar / 1000psi |
|
| 291902 | 2 x Hydraulic Oil – 1L | |
| 293001 | 1 x Adjustable Outboard Hose Kit – Rubber Boot | |
| 293050 | 1 x 50 foot Seastar Standard Outboard Hose | |
| 297332 | 2 x Re-usable Hose Fitting. |
